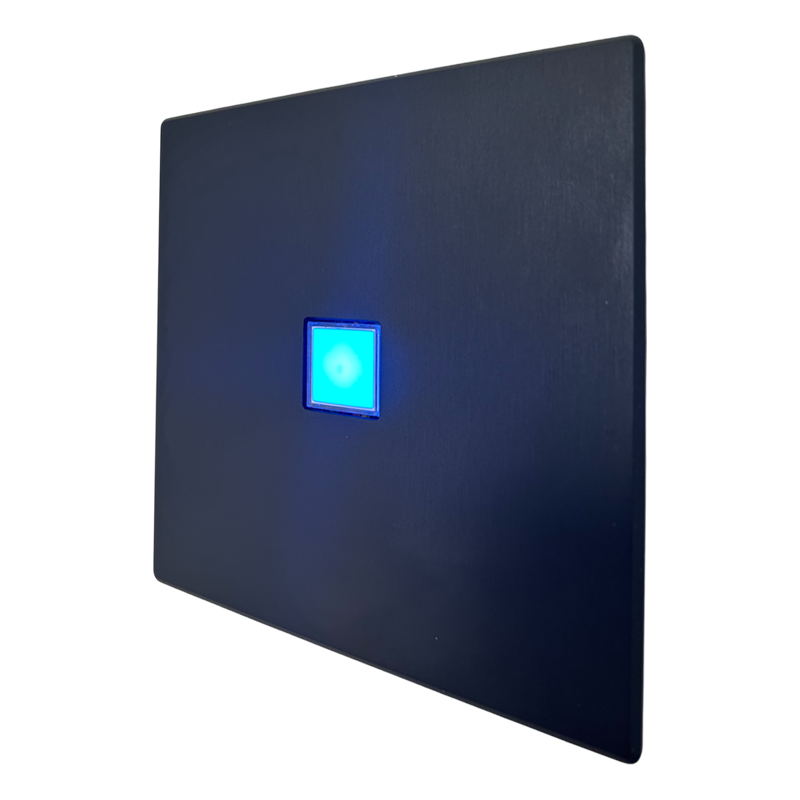

artUI uno

The artUI uno is a simple and easy to operate user interface for the Artistic Licence cueLumen series.

The single tactile button supports multiple button modes, features an RGB internally backlit button allowing for complex control scenarios to be achieved.

An easy installation and commissioning process removes the need for costly and time-consuming software services. This enables streamlined lighting control across a wide range of applications including house lighting, auditoria, small venues, places of worship, museums, performance spaces, and multi-use areas.

The button is internally backlit, can be laser engraved or identified with a printed acetate. A removable faceplate provides for a modern screwless finish.

The artUI uno provides for simplified installation, enabling connection to the wider system via Artistic Licence Cue-Net (serial bus communication), up to 32 can reside on a single line.
Identification and setup are achieved via the cueLumen system or free-for-life configuration software utility Composer.

Features

• Screwless finish single button wall mounted user interface

• Cue-Net serial bus communication

• Button modes include Single scene trigger, 2-Scene toggle, 3-Scene toggle or
Momentary.

• Configurable Zone and Scene Triggers

• 'LED Disable' to extinguish LED tellback

• ‘Show Mode’ / 'Device Disable', per individual user interface or all user interfaces assigned to a particular zone.

• Single button press linking process with artCore or cueLumen core

• Configurable dry contact input for Keyswitch or other external input trigger.

• Free configuration software utility Composer - or basic configuration via artPlay touchscreen/cueLumen system

Specification

• Listing: CE, UKCA, FCC, WEEE, RoHS

• IP Rating: Indoor use

• Input Voltage: 24 VDC

• Input power:

• Cue-Net communication

• Width: 86mm

• Height: 86mm

• Depth: 35mm

• Net Mass: 0.10 kg

• Requires UK 86x86mm backbox - 47mm deep

• Manufacturer: Artistic Licence

Resources

artUI uno Datasheet

cueLumen system map

Certification

artUI Declaration of Conformity

artUI Certificate of Origin
