artPlay

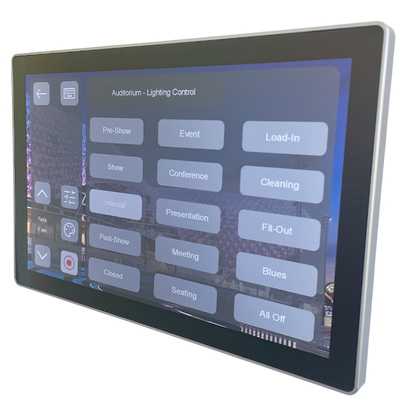

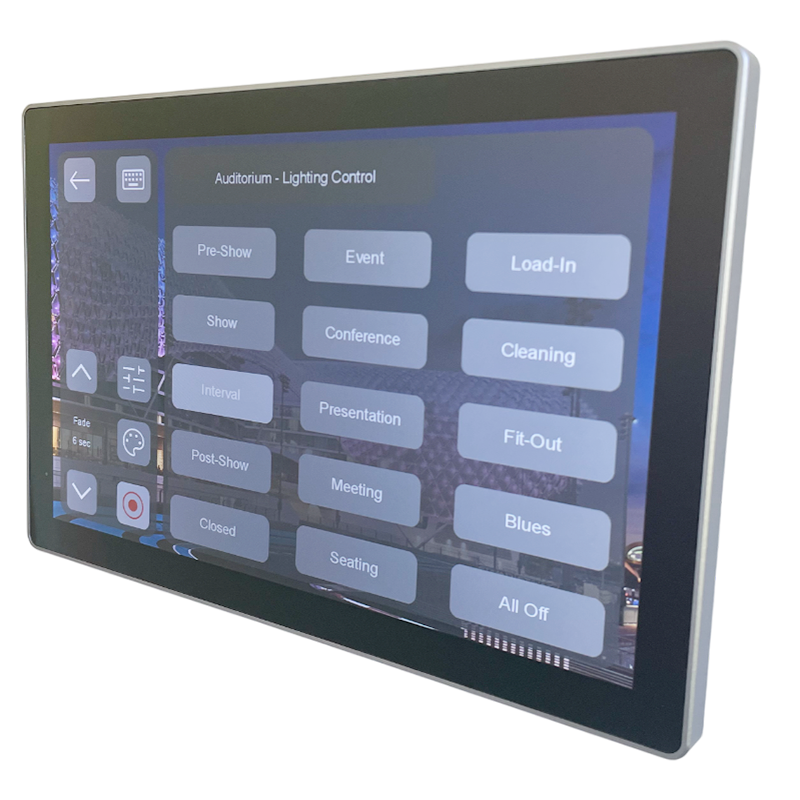

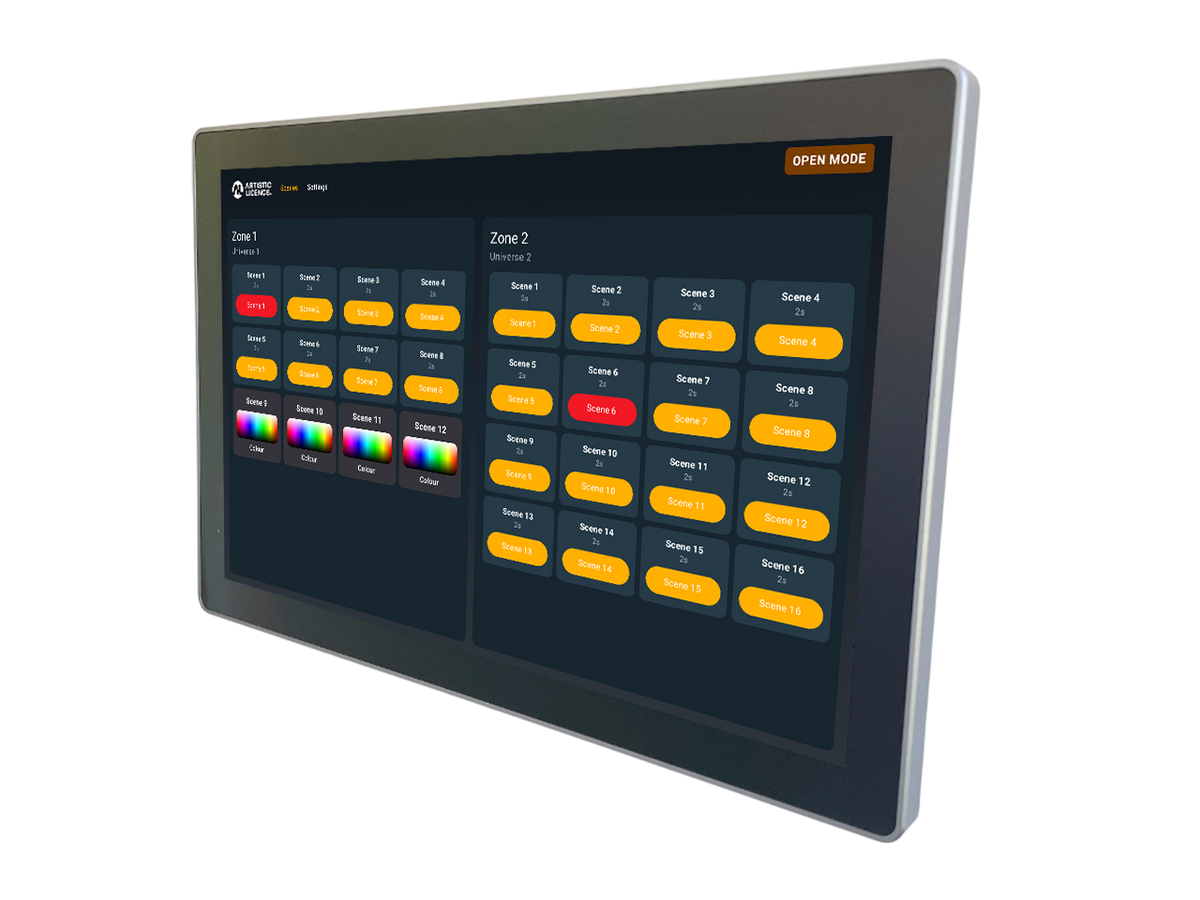

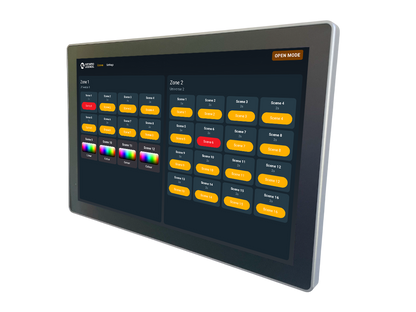

artPlay is a wall-mounted, PoE-powered 10” colour touchscreen designed to be simple to operate, by anyone, with scene capture, recall and edit functions.

An easy installation and commissioning process removes the need for costly and time-consuming software services. This enables streamlined lighting control across a wide range of applications including house lighting, auditoria, small venues, places of worship, museums, performance spaces, and multi-use areas.

Equally appealing to designers, specifiers, and end-users, artPlay delivers unparalleled flexibility and scalability for environments requiring robust and reliable lighting control; every day, every performance.

As a standalone solution, artPlay provides two universes of control (1024 channels). When used as a control surface for the Artistic Licence artCore controller, the applications are virtually limitless.

Features

• 10" wall mounted touchscreen

• PoE powered for ease of installation

• Universes: 2 outputs Art-Net, sACN or Sig-Net - Ethernet

• Zones: 2 zones of 512 channels

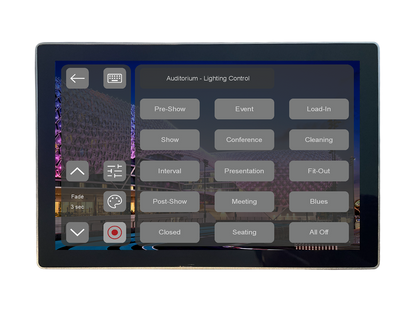

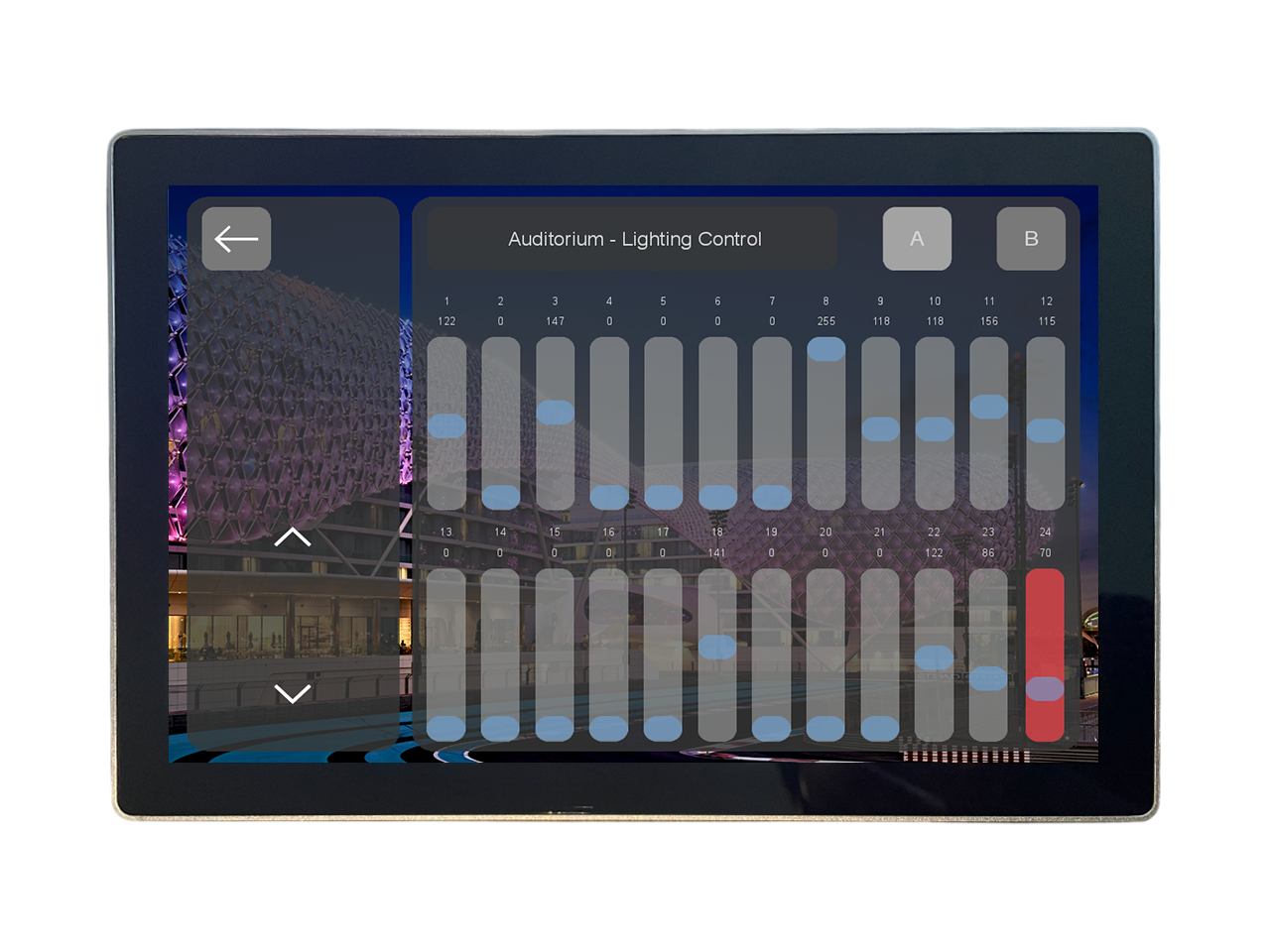

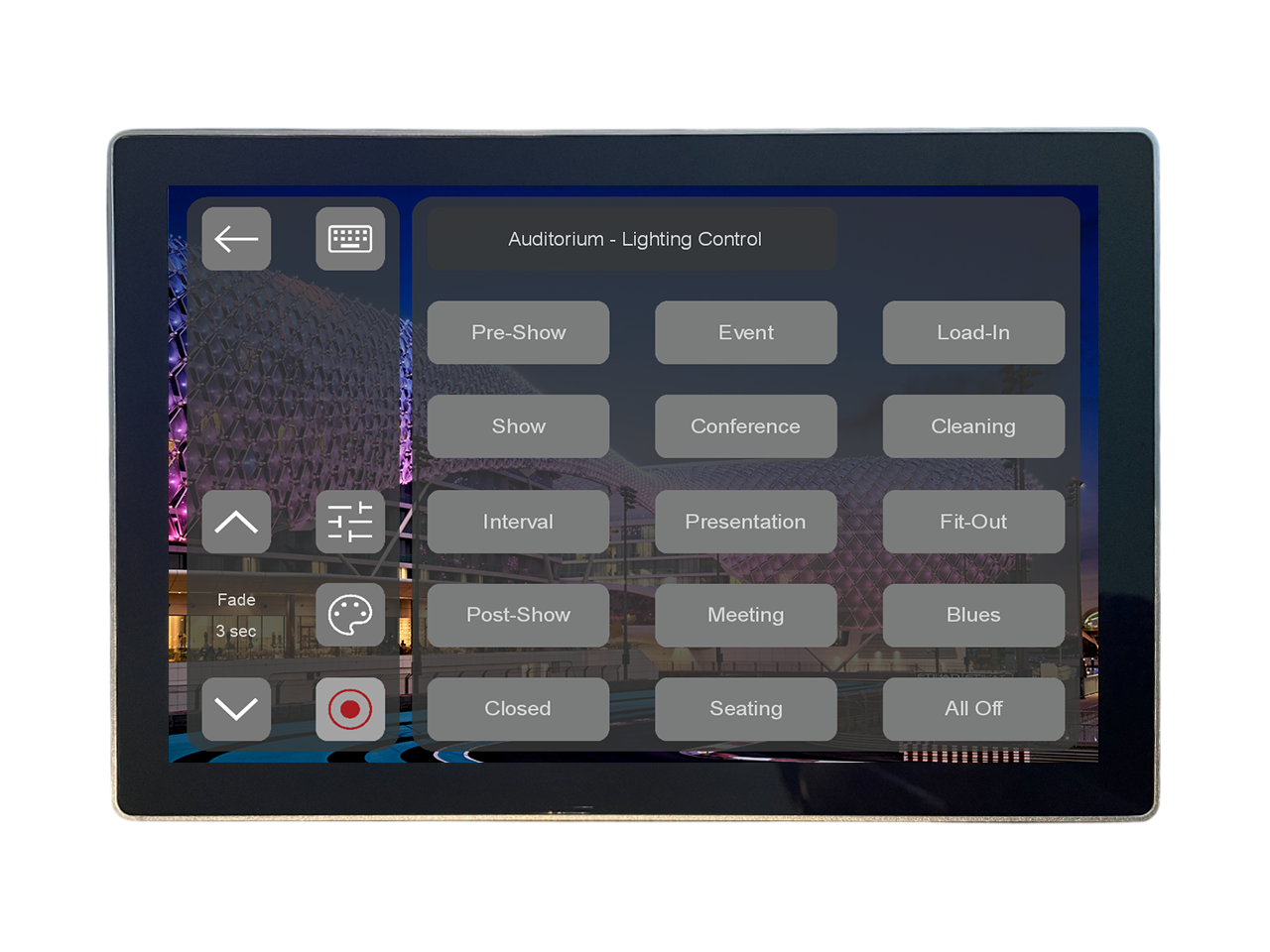

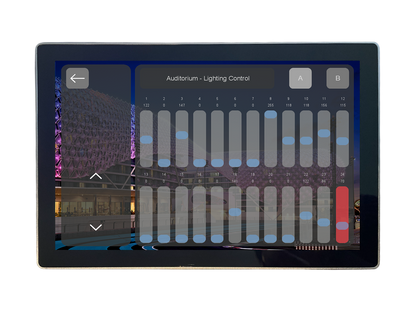

• Scenes: 16 per Universe (512 channels) level or ignore flag per channel

• Fade time: User configurable 0-360s

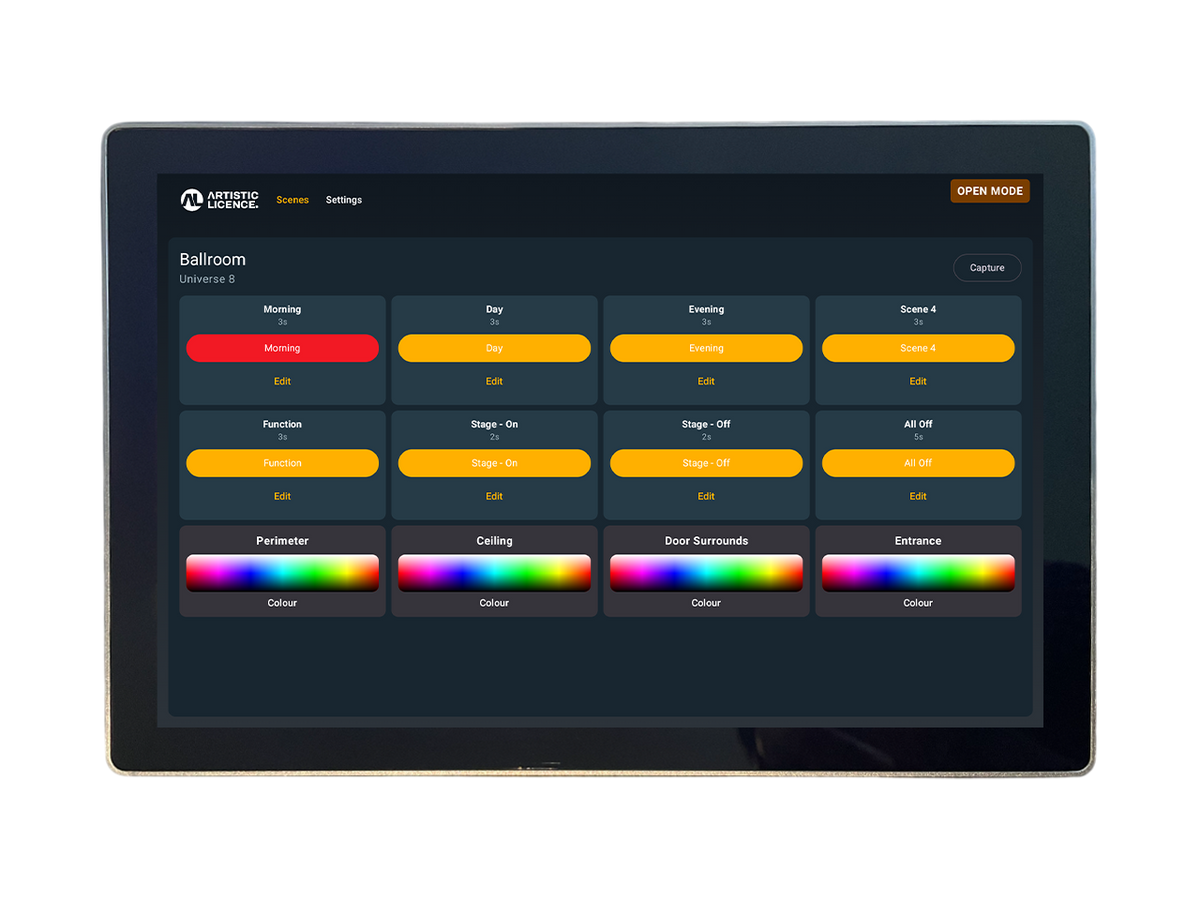

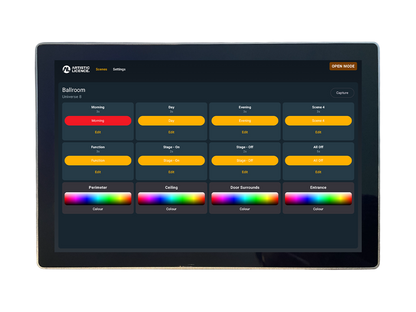

• Capture and record, live from any Art-Net, sACN or Sig-Net controller

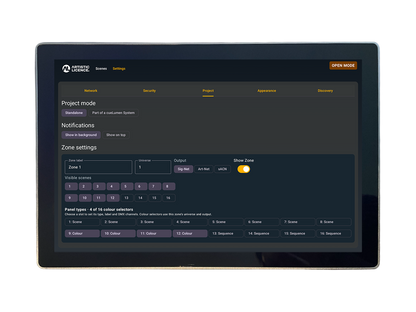

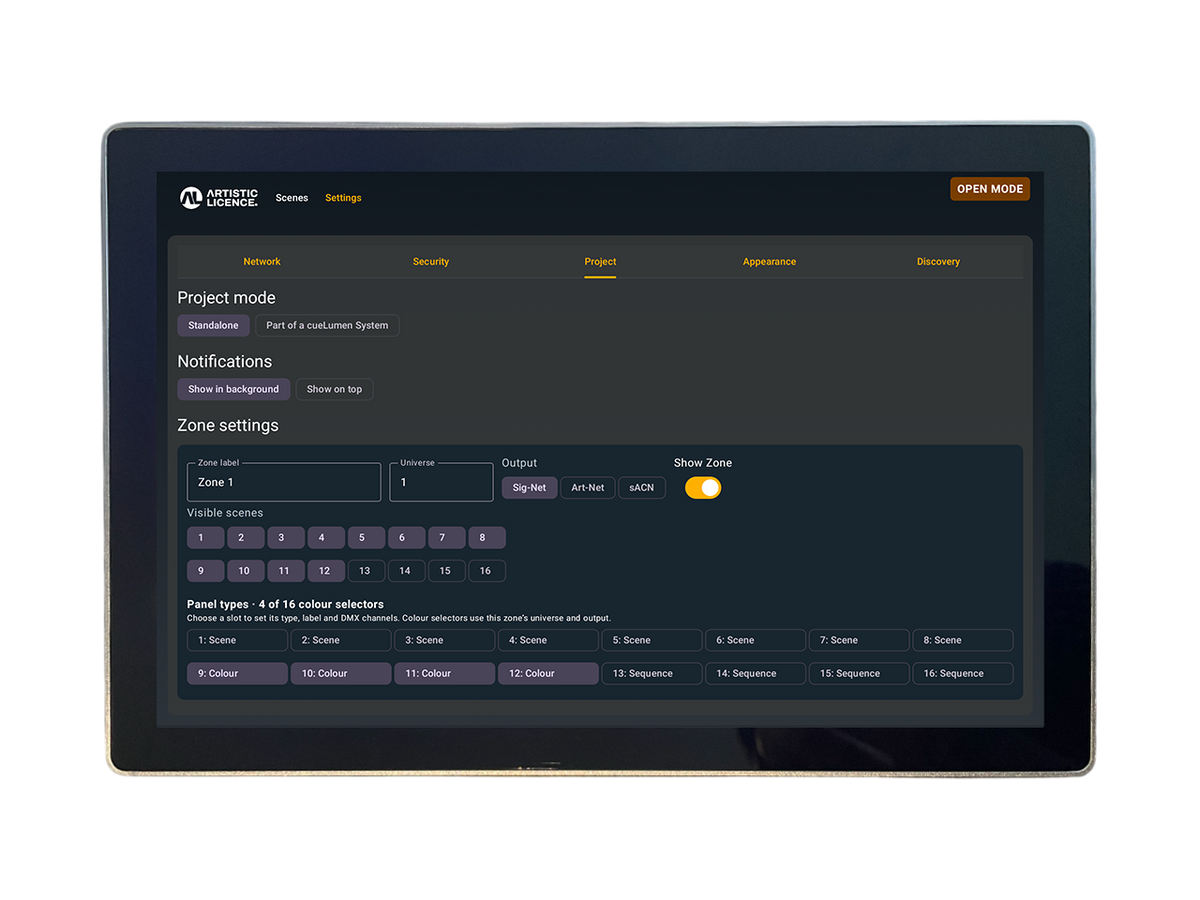

• On-screen setup without external software

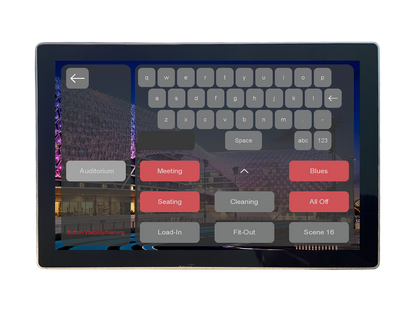

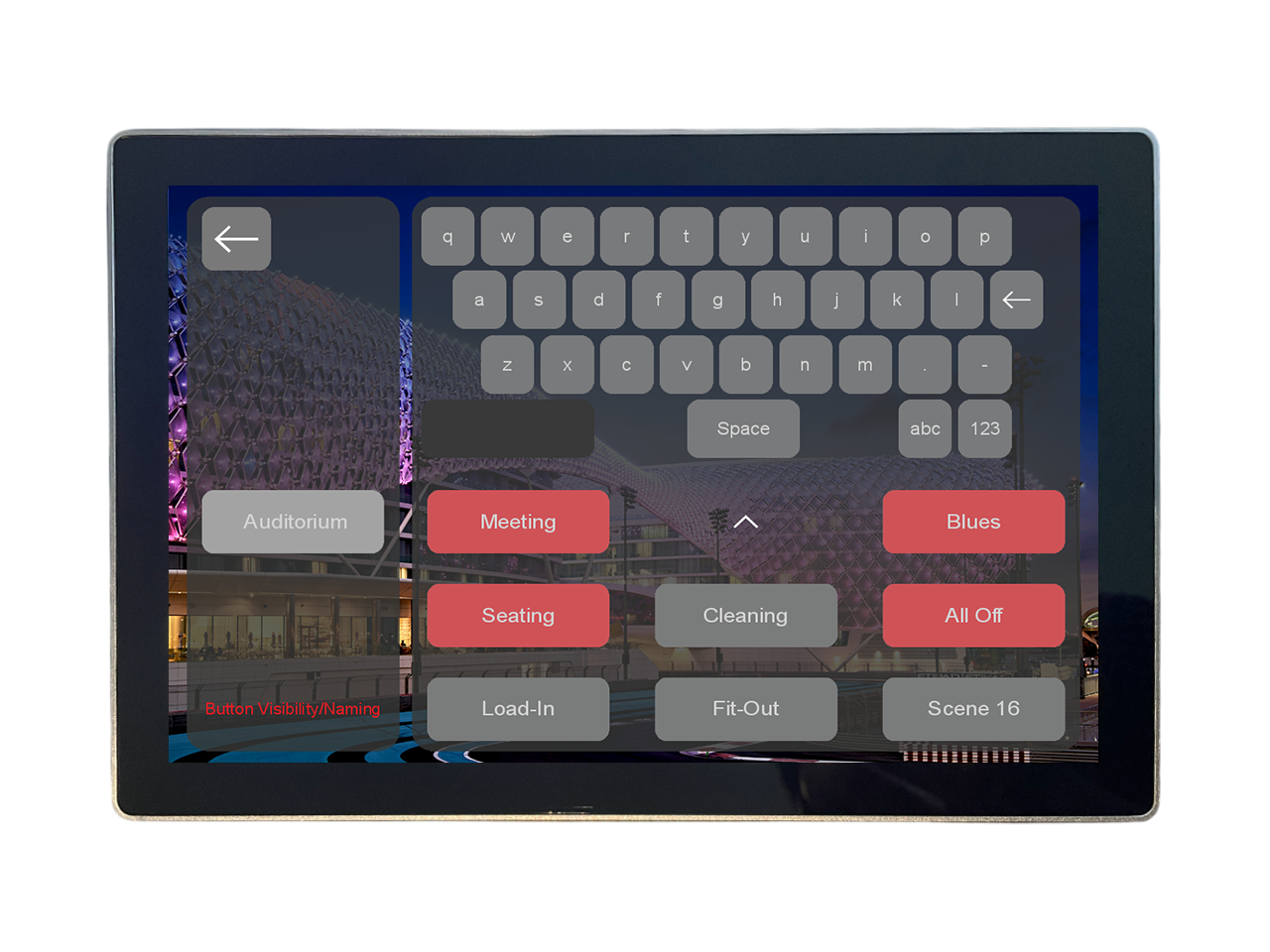

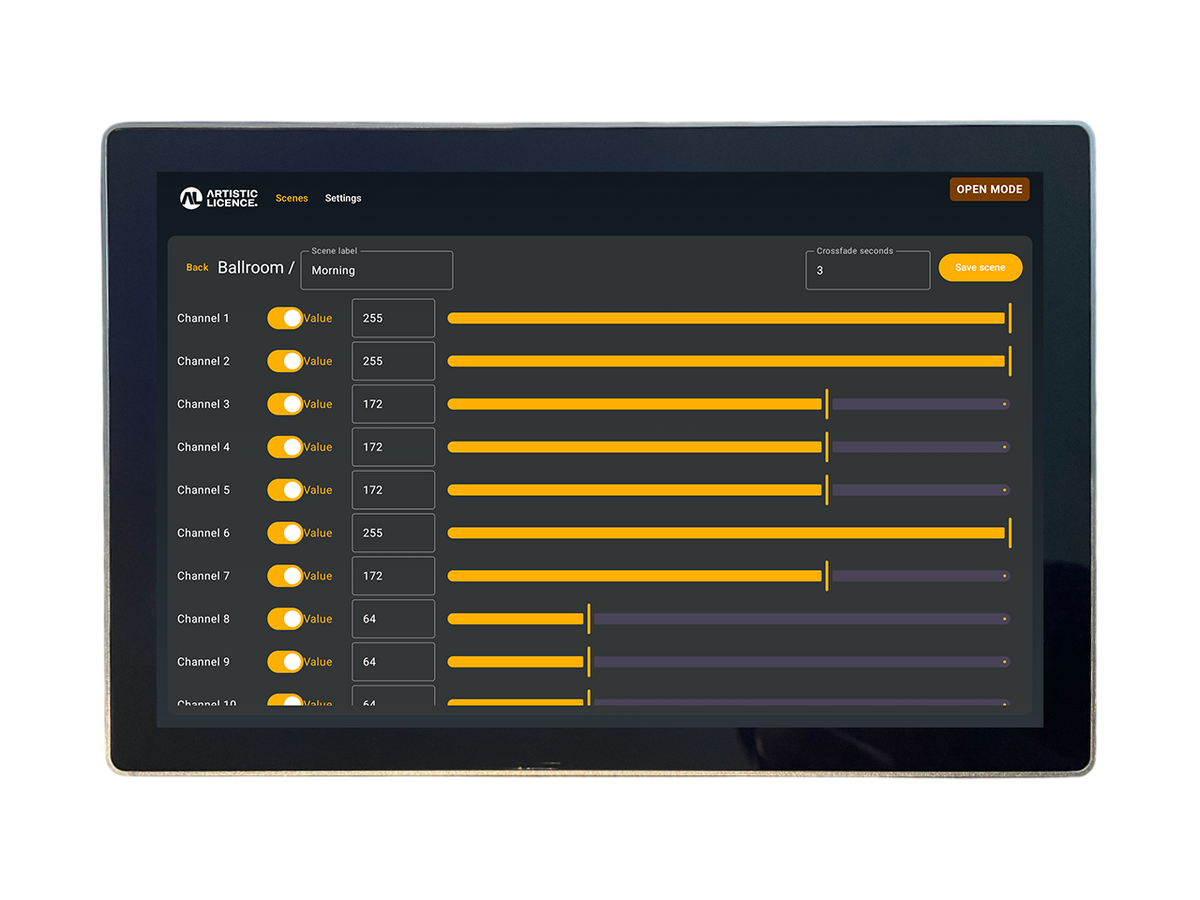

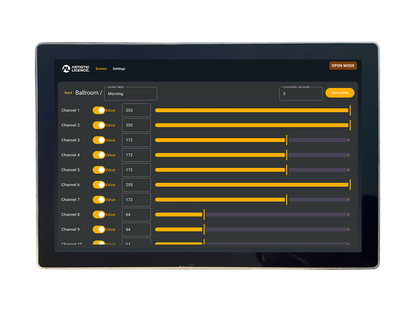

• On-screen scene and zone naming

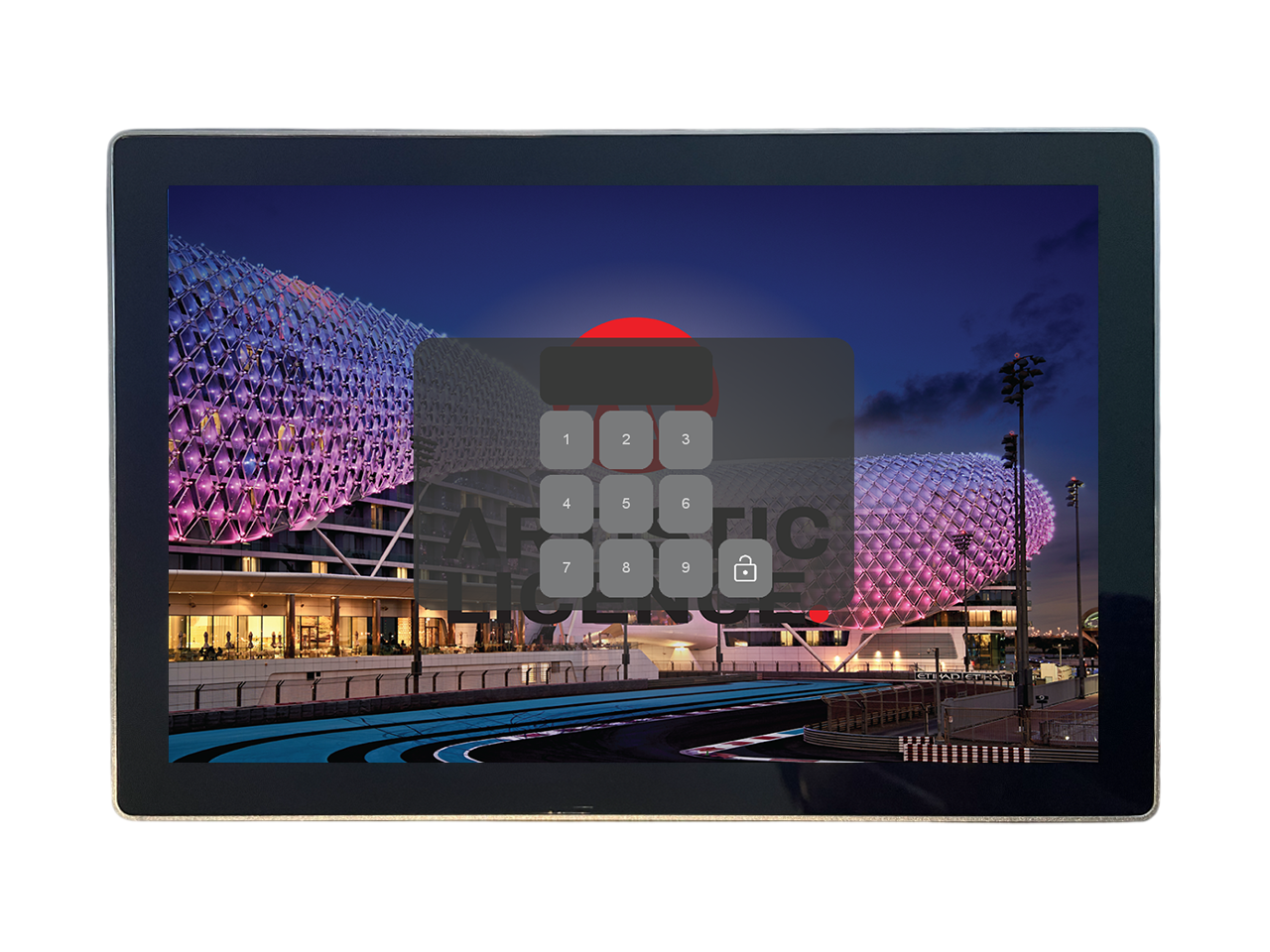

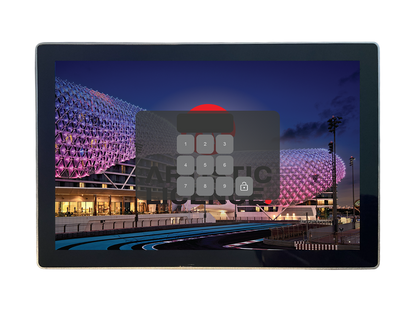

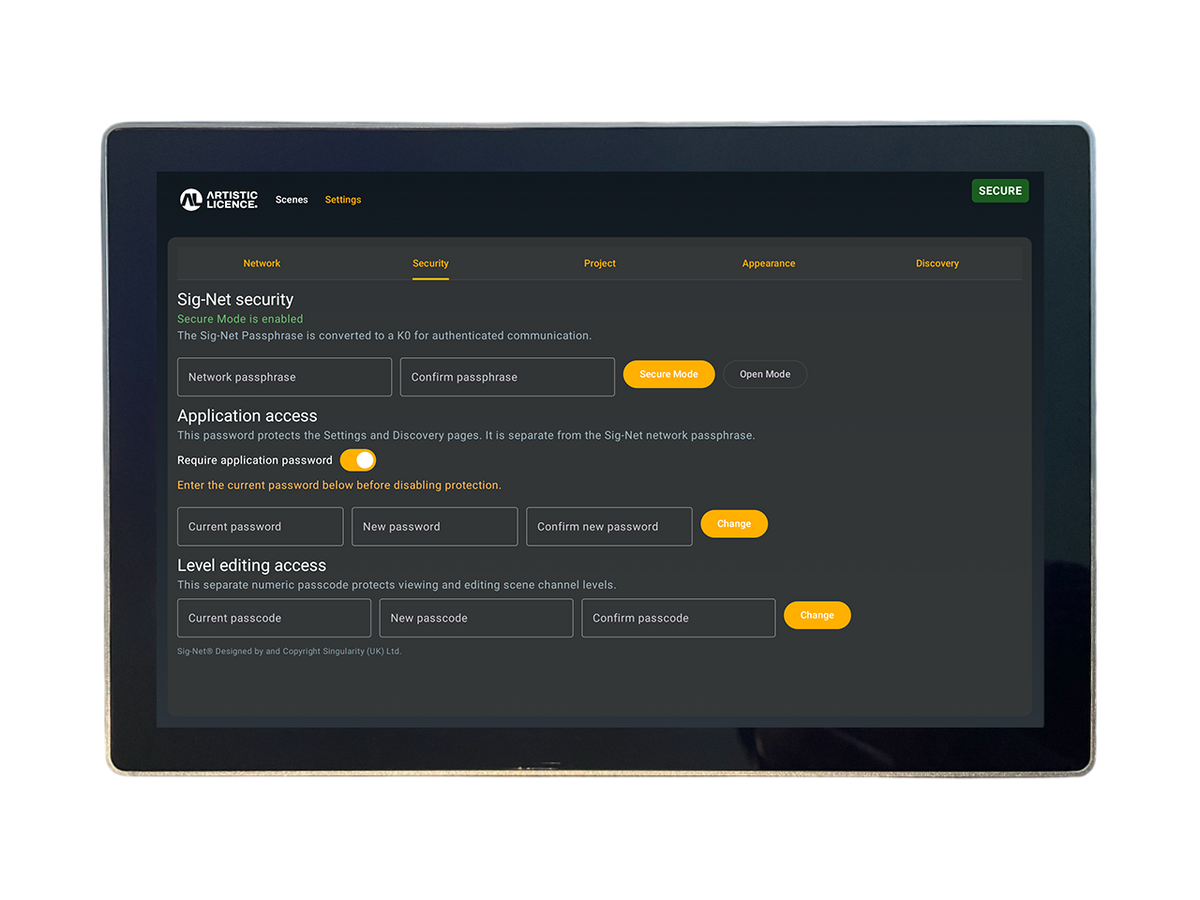

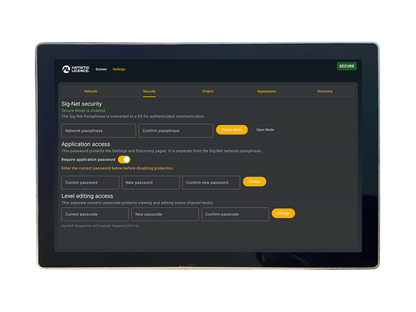

• Configurable passcodes/passwords for whole screen, edit and settings pages

• Secure Sig-Net communication & discovery

• Scene slots configurable as Scene Trigger, Colour Control or Sequence

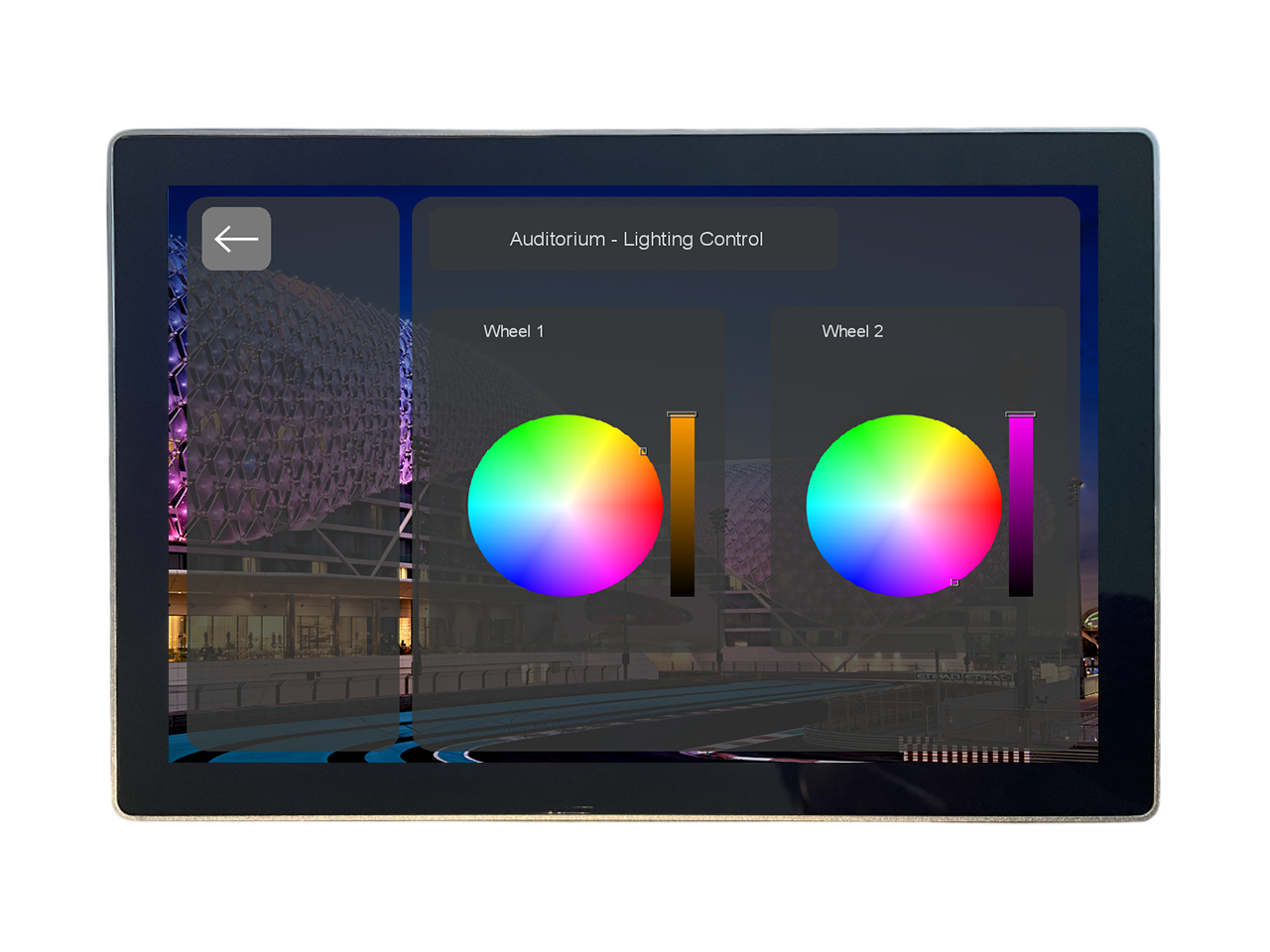

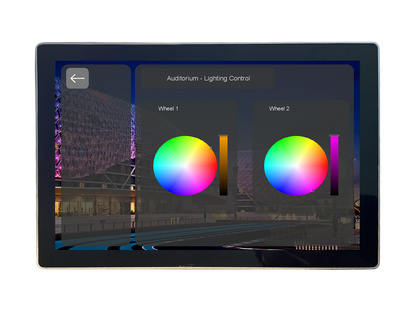

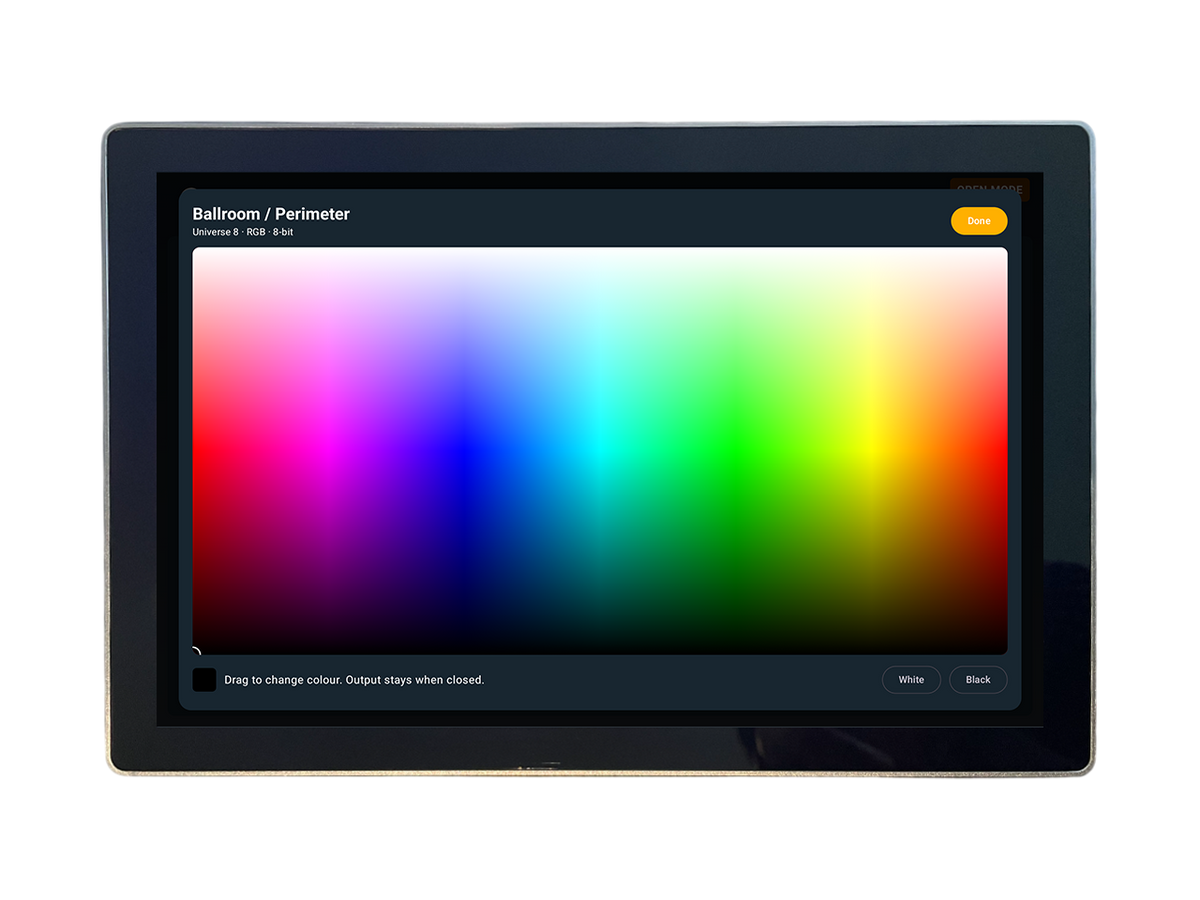

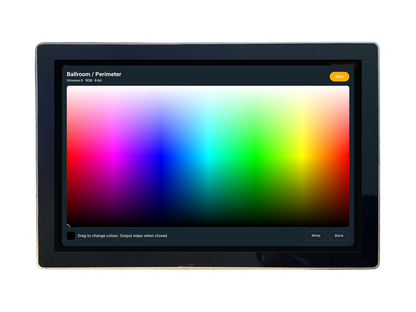

• Configurable RGB, RGBW, 8 or 16-bit colour pickers

• User defined sequences with configurable step and fade times

Specification

• Listing: CE, UKCA, UL, WEEE, RoHS

• IP Rating: Indoor use

• Input Voltage: 24 VDC or PoE

• Input power: PoE Negotiates Class 2 (3.84W - 6.49W)

• Width: 245.5mm

• Height: 164mm

• Depth: 27mm

• Net Mass: 0.20 kg

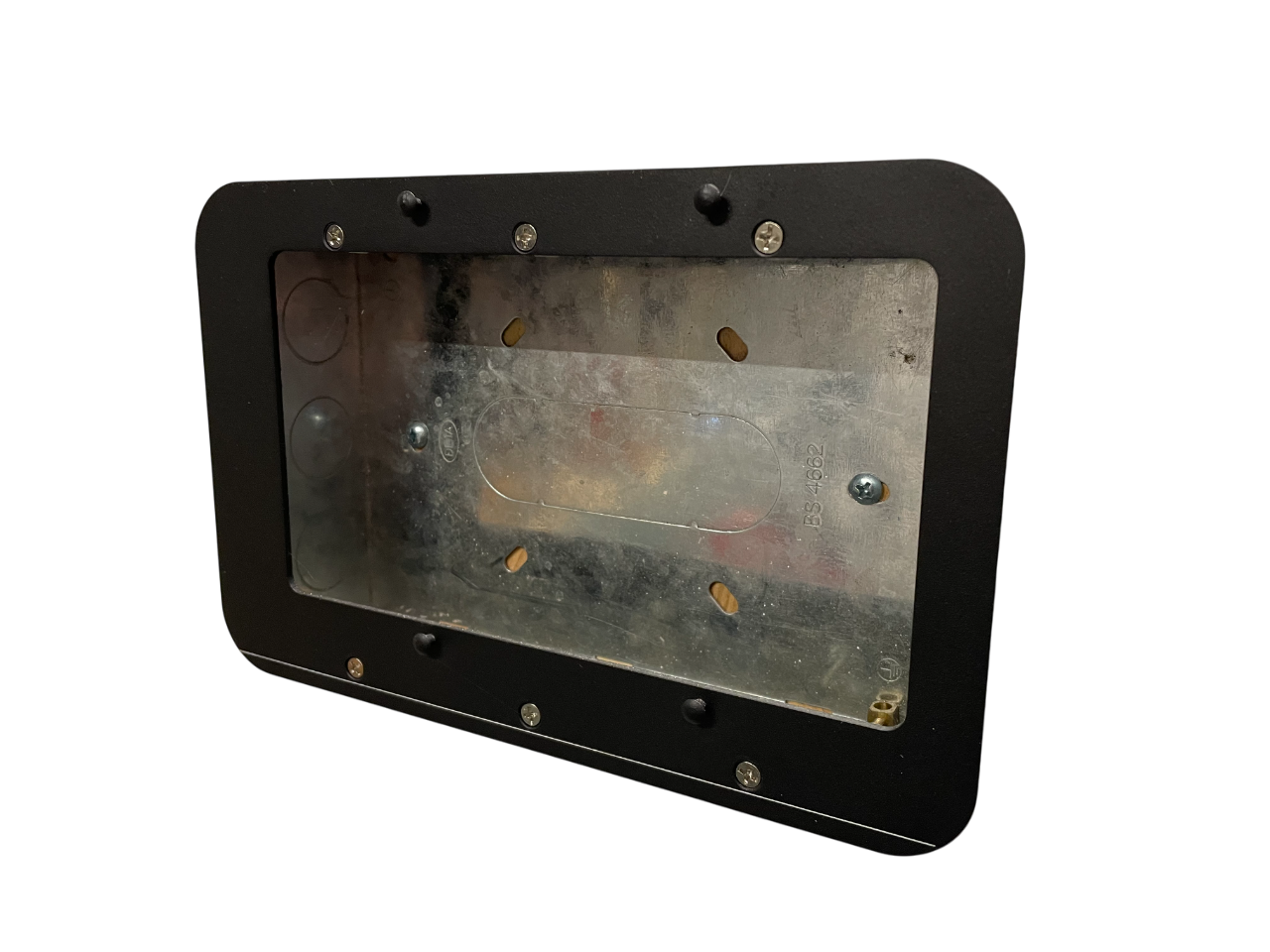

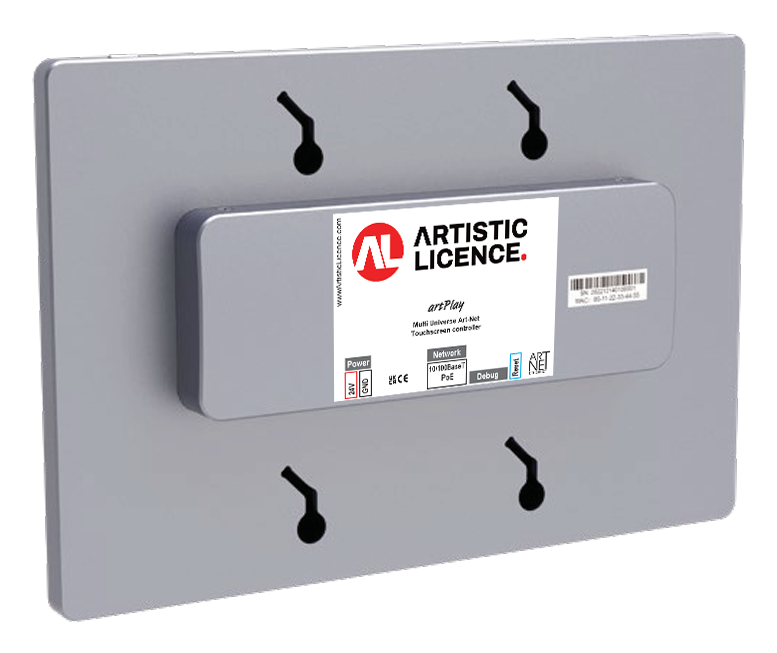

• Mounting bracket included for panel/pattress mounting or use optional backbox (UK 9/12 Module box)

• Manufacturer: Artistic Licence

Resources

artPlay Datasheet

artPlay User Guide

artPlay Product Guide

artPlay UI Map

Video Tutorials

artPlay - Initial setup

artPlay - Configure for use

artPlay - Recording Scenes

artPlay - Naming, Layouts and Passcodes

Certification

artPlay Declaration of Conformity

artPlay Certificate of Origin
