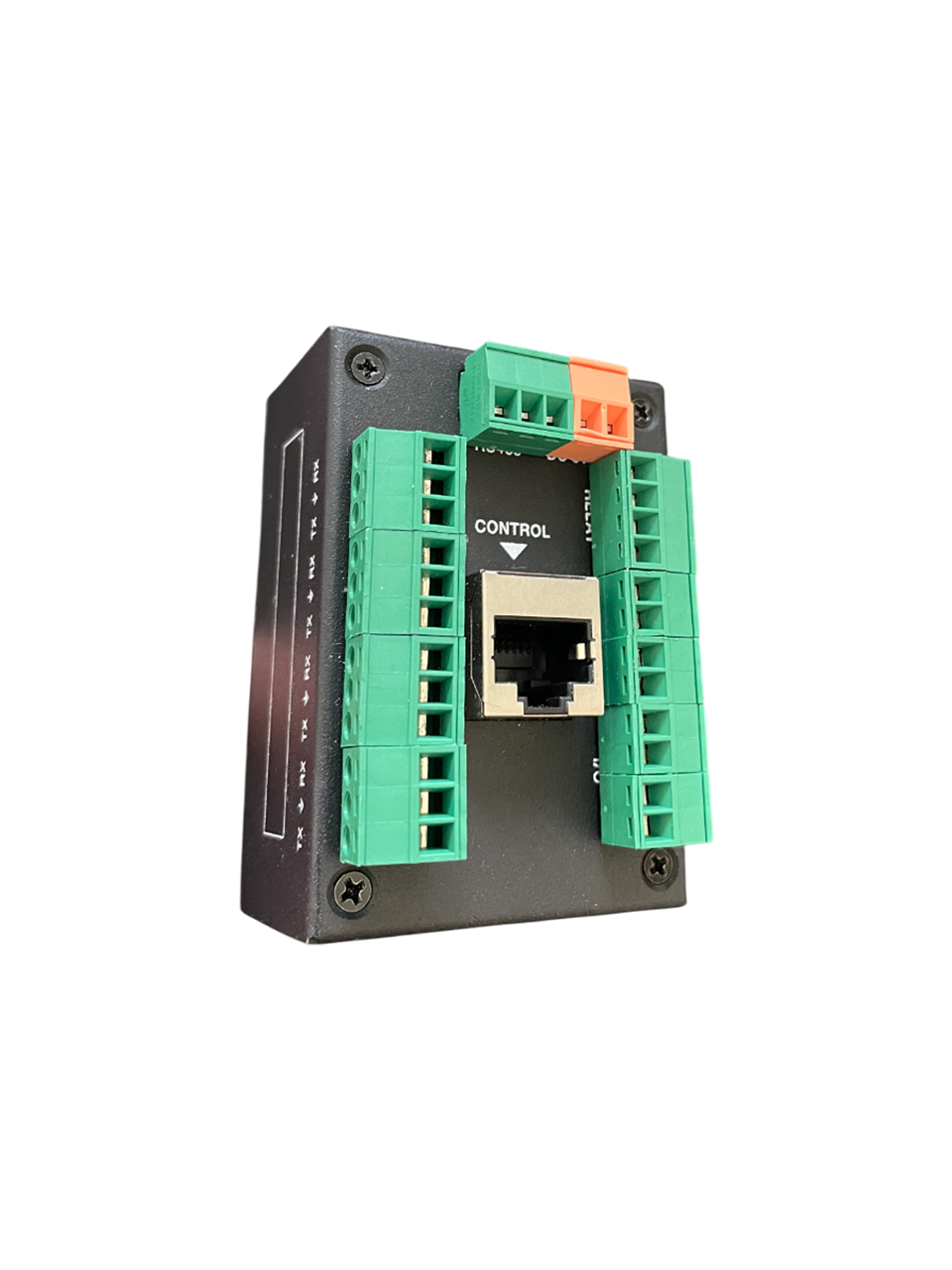

artIO

The artIO is a comprehensive integration module for the Artistic Licence cueLumen series.

artIO serves two purposes, as a system integration module for the artCore or cueLumen core and as an artUI gateway, allowing the expansion of a system to include more than 16 artUI user interfaces. The setup is all handled via the artCore processor or cueLumen core.

As a system integration module the artIO provides Serial 485 and RS232 integration, along with enabling the connection of 2 volt free inputs and 2 volt free output devices.

An easy installation and commissioning process removes the need for costly and time-consuming software services. This enables streamlined lighting control across a wide range of applications including house lighting, auditoria, small venues, places of worship, museums, performance spaces, and multi-use areas.

Depending on the particular application being supported artIO can communicate and be powered via PoE Ethernet or via a serial control and 24V DC power bus.

Features

• Small compact form factor

• PoE power and communication or Control+Power bus wiring for ease of installation

• Uses include:

   • Dy contact input/output

   • RS232/485 integration input/output

   • artUI gateway, enabling multiple artUI to connect to a single artCore or cueLumen core processor.

• Software free configuration and setup

• Simple and secure web interface for setting IP address or performing firmware updates

Specification

• Listing: CE, UKCA, FCC, WEEE, RoHS

• IP Rating: Indoor use

• Input Voltage: 24 VDC or PoE

• Input power: PoE Negotiates Class 2 (3.84W - 6.49W)

• Width: 48mm

• Height: 69mm

• Depth: 35mm

• Net Mass: 0.10 kg

• Manufacturer: Artistic Licence

Resources

artIO Datasheet

cueLumen system map

Certification

artIO Declaration of Conformity

artIO Certificate of Origin
