artSwitch PoE

artSwitch PoE

Please login for pricing

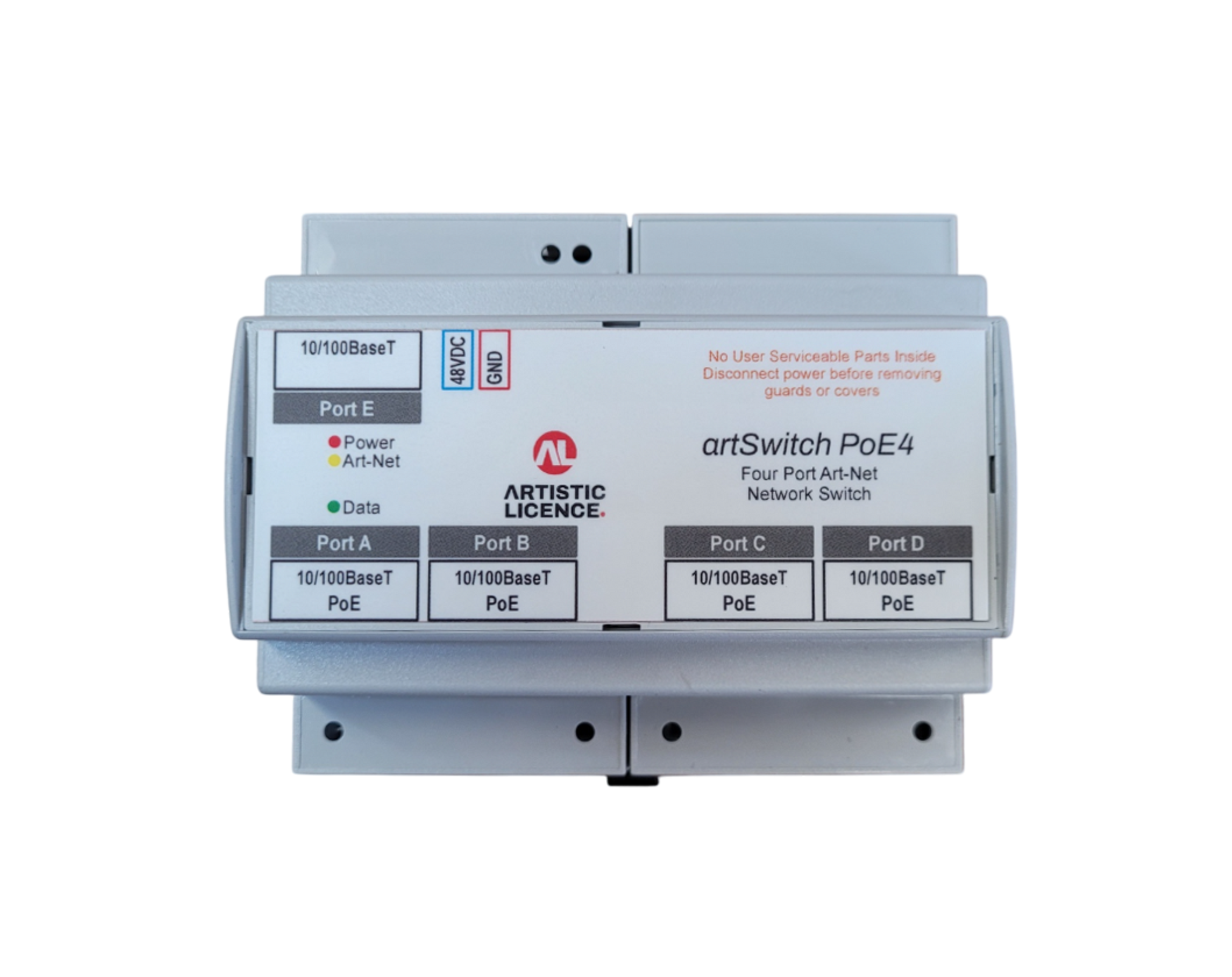

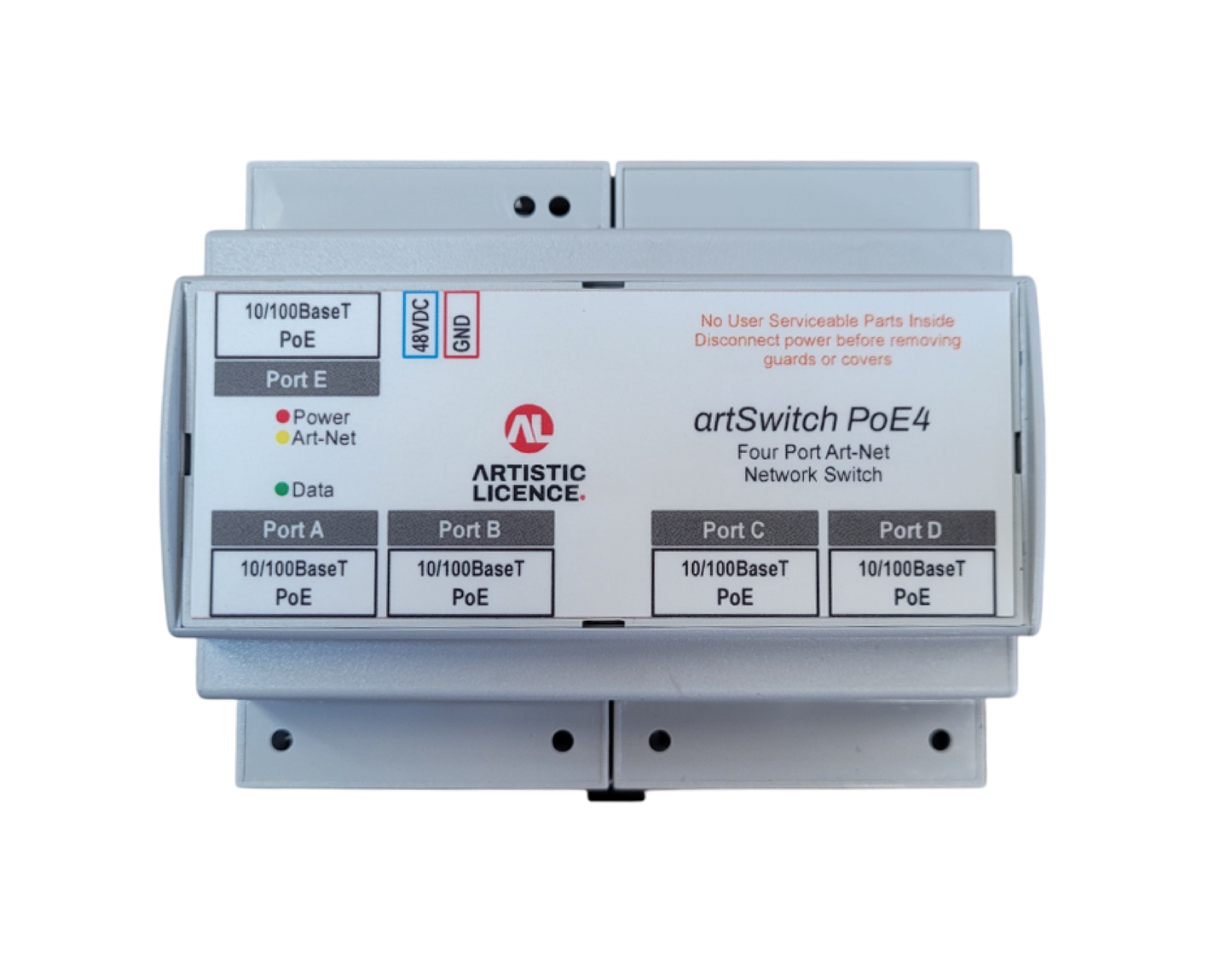

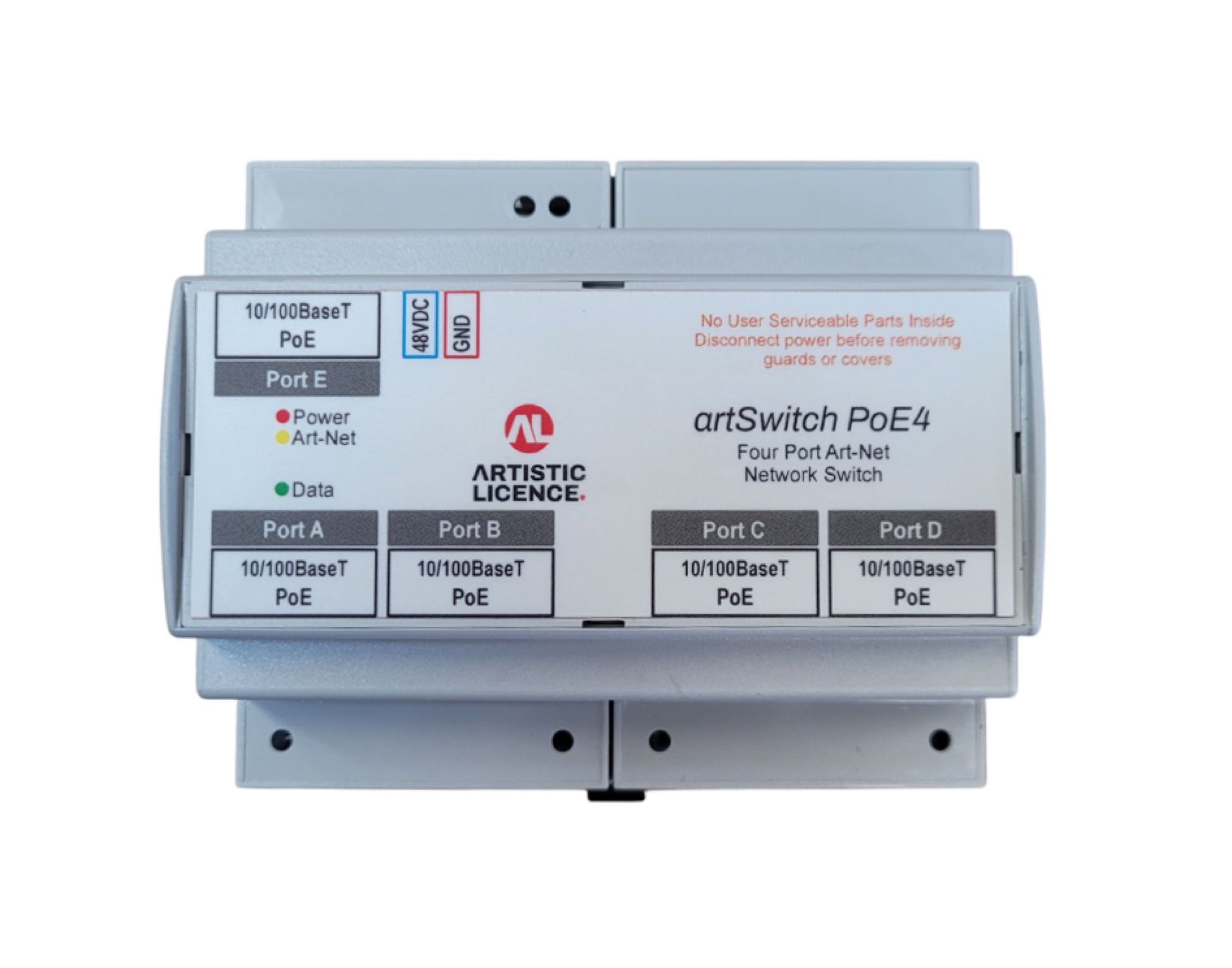

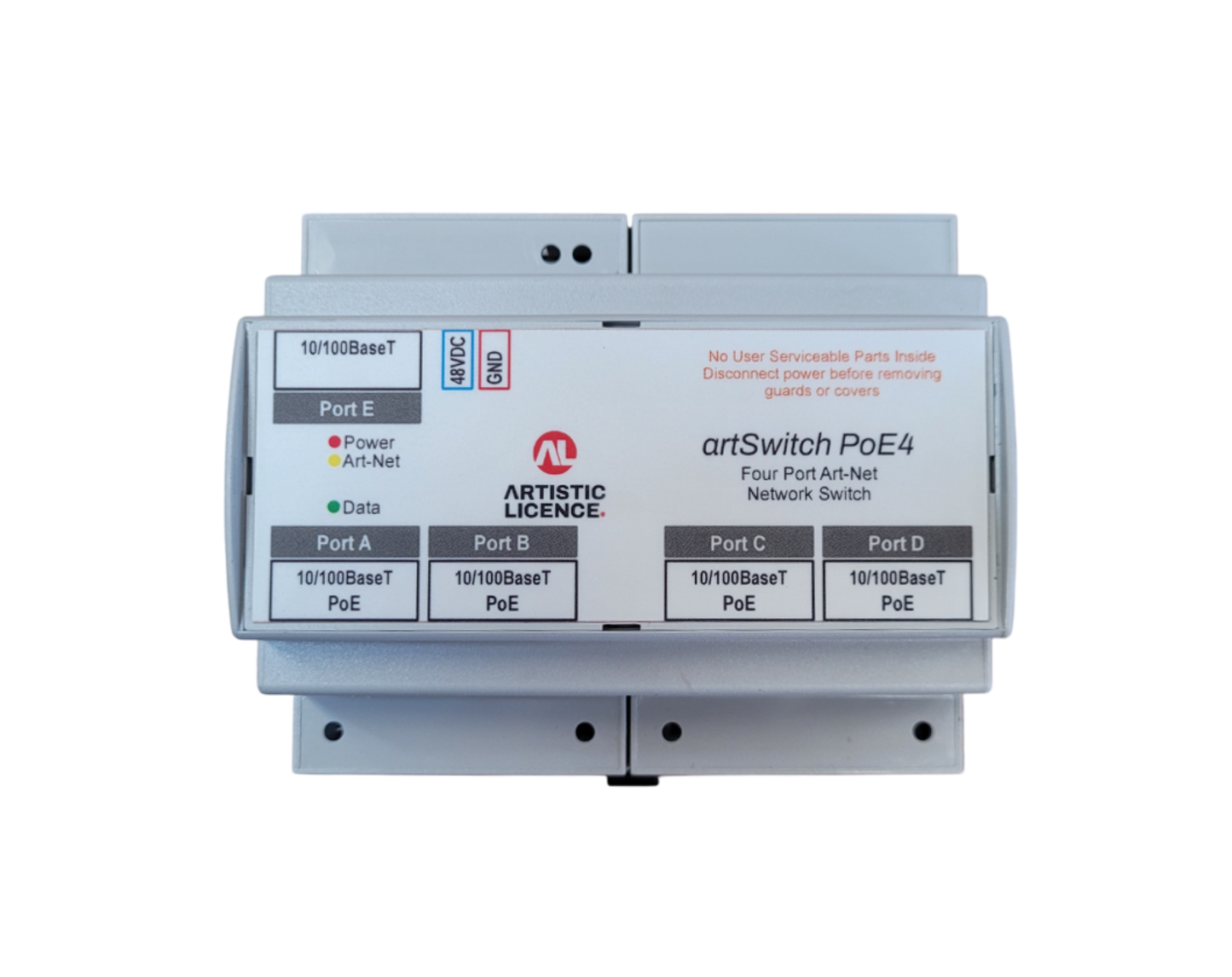

artSwitch PoE is an un-managed 5 port 10/100Mbps network switch, four ports of which provide PoE.

Specifically designed for DINrail mounting, artSwitch PoE is a key building block in distributed lighting control solutions, providing both communication and power for up to four gateways or user interfaces.

The fifth port provides a convenient means of connection to a wider IP network.

Features

• Control: IEEE 802.3 Ethernet - Auto-Detect (speed & cable type)

• Output Protocols:
- 1 x 10/100BaseT (Half/Full Duplex) Port
- 4 x 10/100BaseT (Half/Full Duplex) Ports with 802.3af PoE

• Art-Net/Ethernet - quantity 1
- RJ45 Ethernet

• Art-Net/Ethernet PoE - quantity 4
- RJ45 Ethernet

• Power input - quantity 1
- 2pin Screw Terminal Push Connector

• LED Indicators
- Duplex (single port) / PoE Active (four ports)

• General Isolation: All Ethernet ports isolated to 2kV

Specification

 • Certification: CE, UKCA, WEEE, RoHS

 • IP rating: IP20 indoor use only

• Input Voltage: 48V DC / 1A

• Input power: (max) 48W

• Output Voltage: 48V thru PoE ports

• Width: 105.6mm (6 DIN Modules)

• Height: 90mm

• Depth: 62mm

• Net Mass: 0.2 kg

Resources

artSwitch PoE Datasheet

Certification

artSwitch PoE Declaration of Conformity
