cueLumen core

cueLumen core

Please login for pricing

The cueLumen core provides the foundation for any intelligent lighting control solution.

Each core includes DMX outputs for direct load control, has capacity for system expansion and a dedicated artCore automation gateway to support communication with touchscreens and user interfaces.

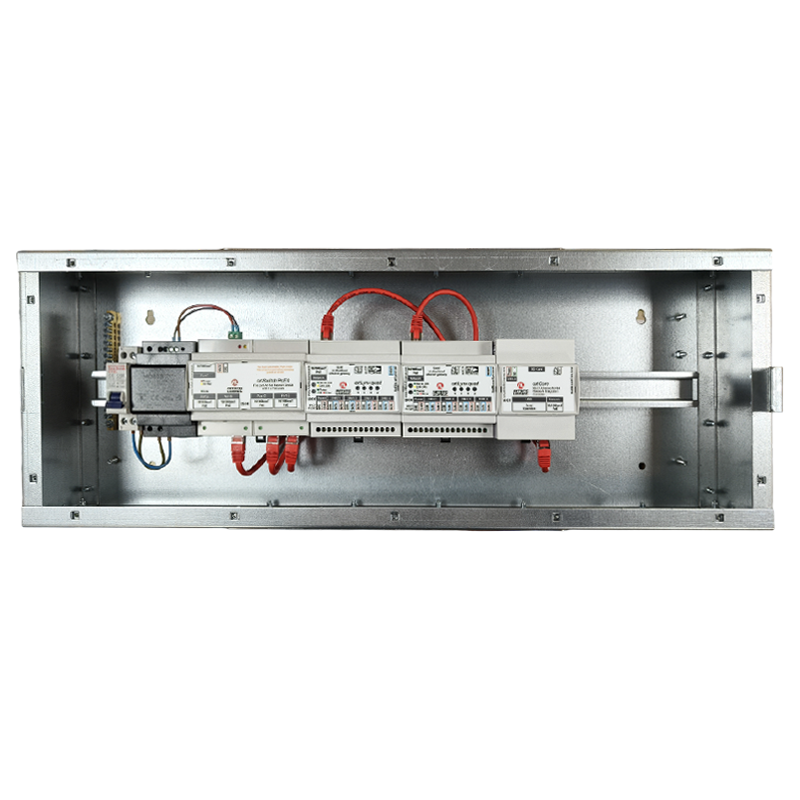

The internal PoE network switch and power supply enable simple and efficient ‘plug and play’ installation in to a wider managed lighting control network.

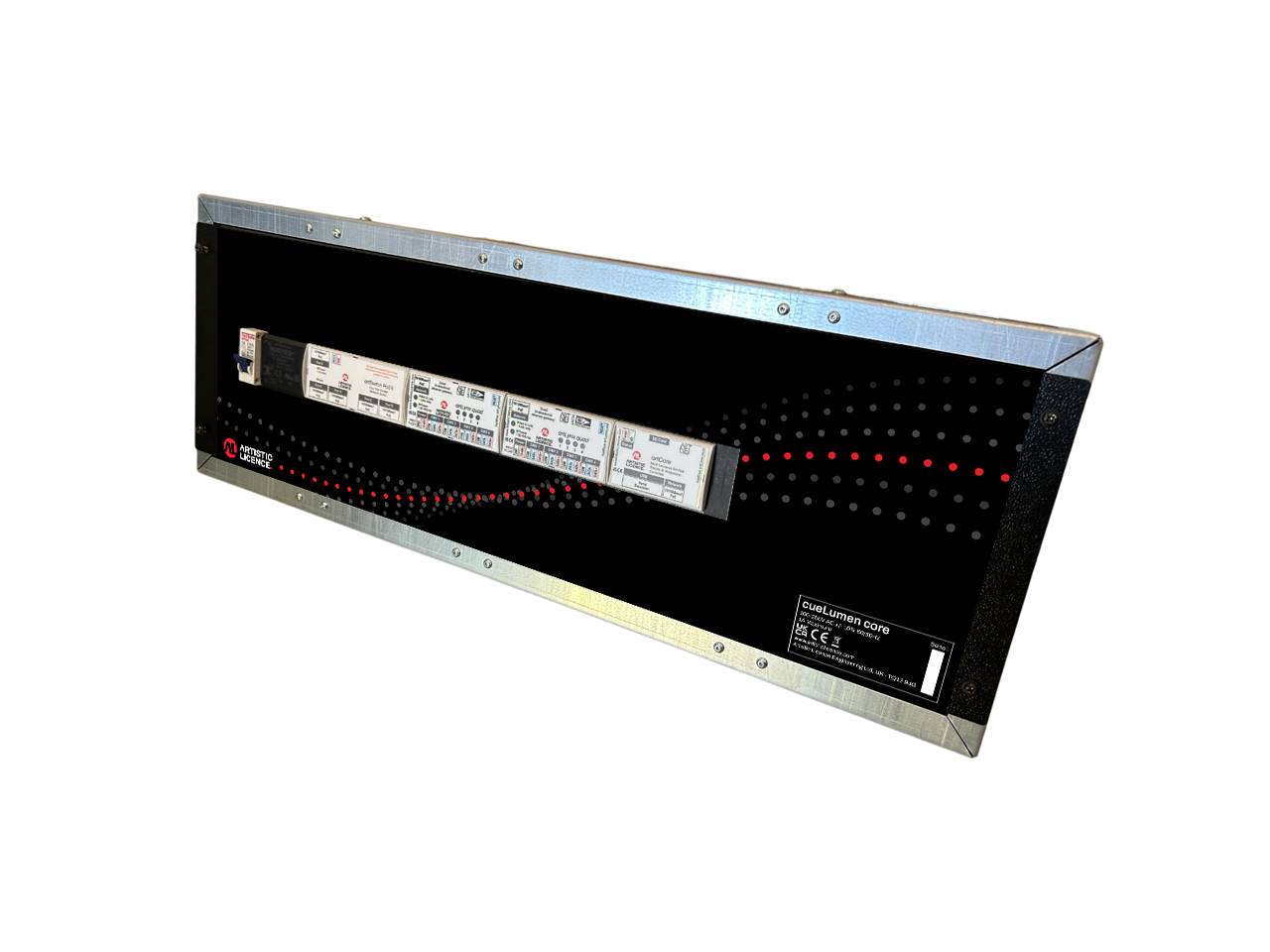

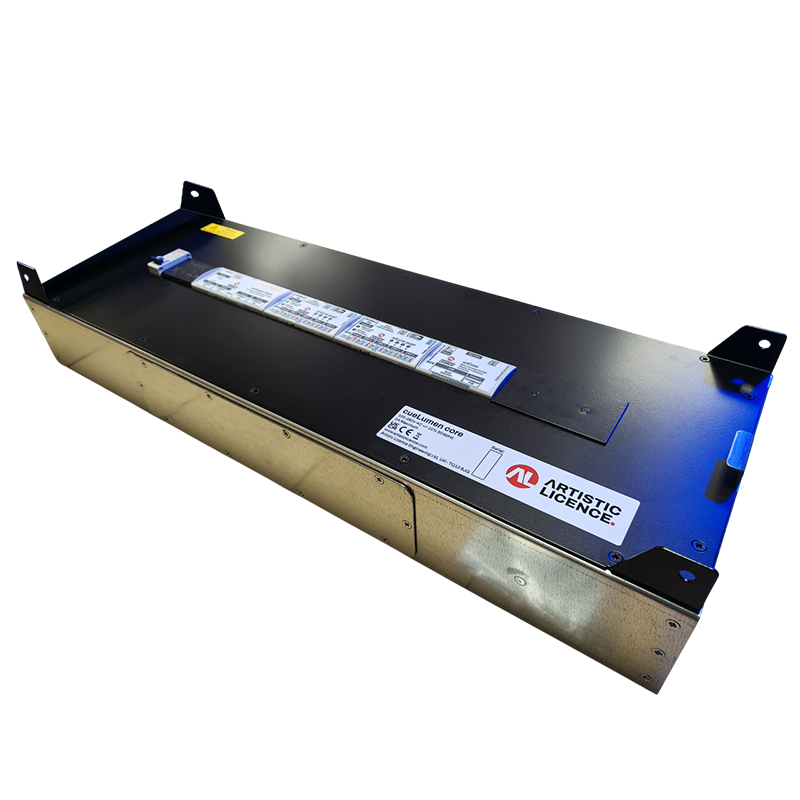

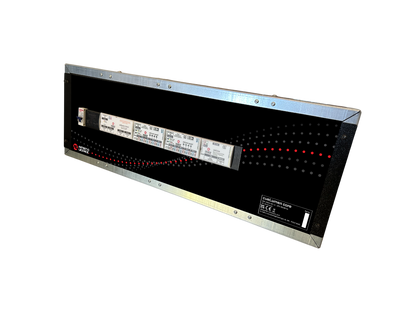

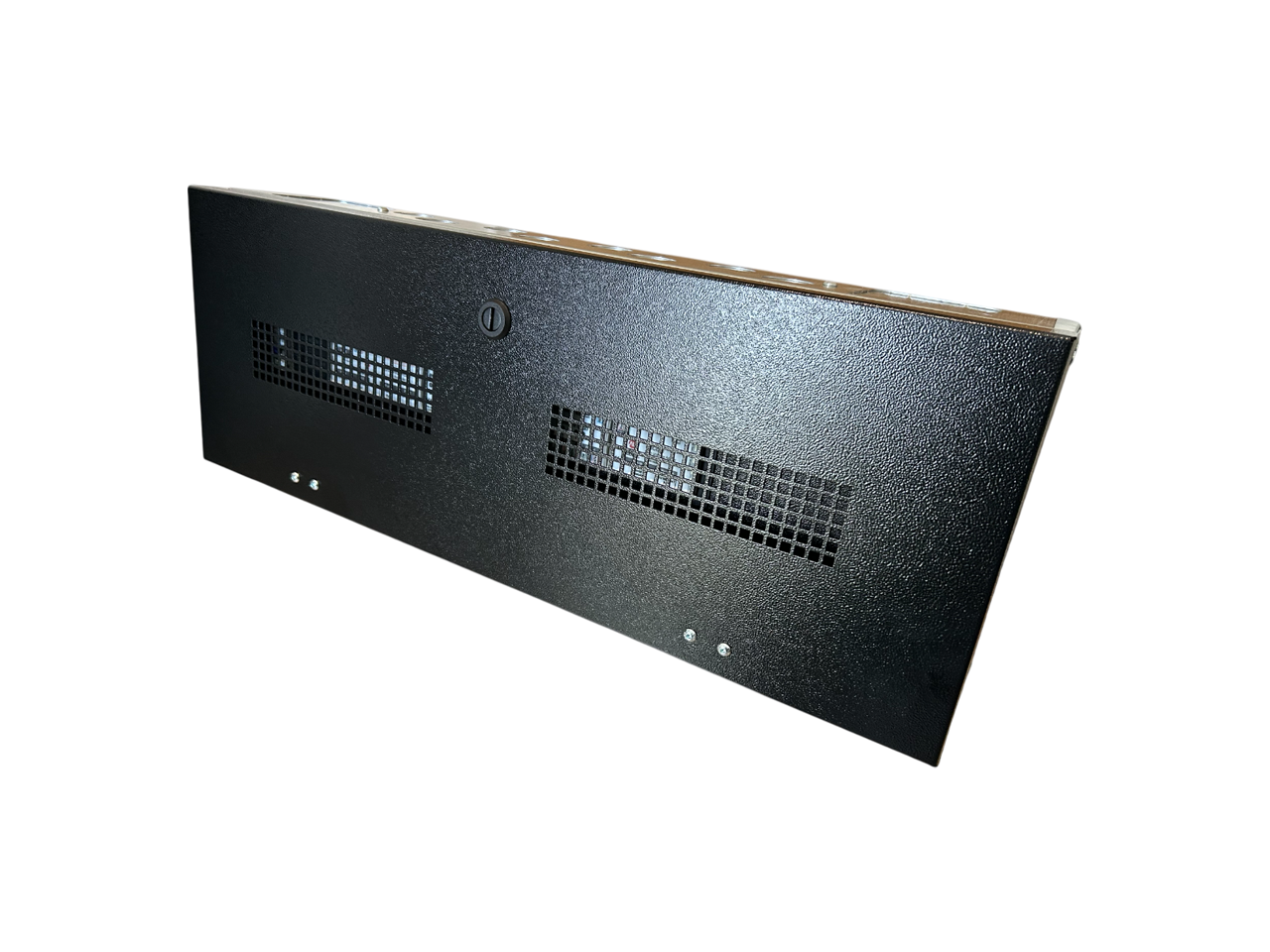

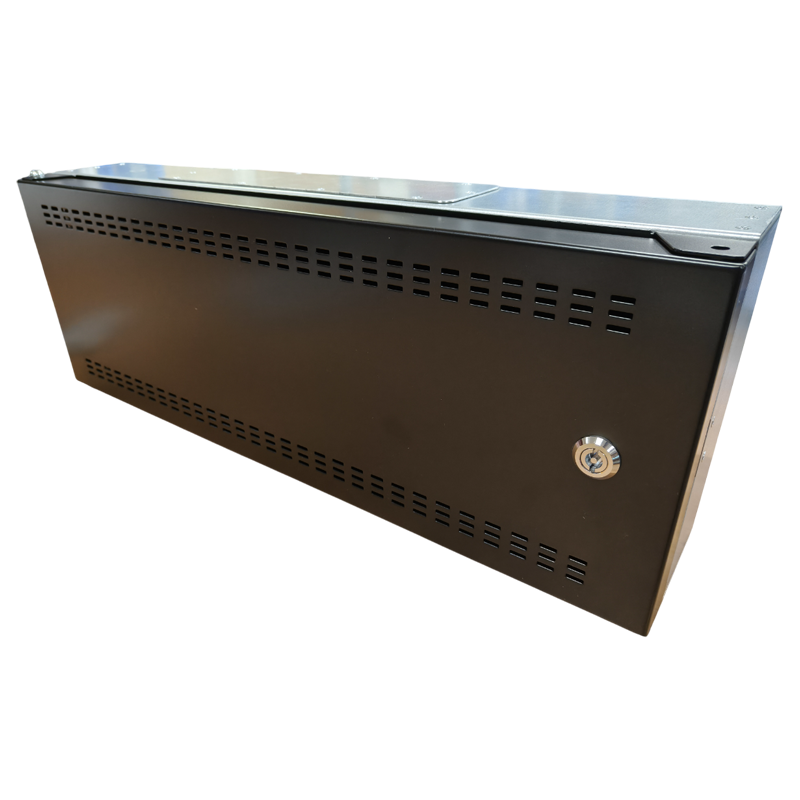

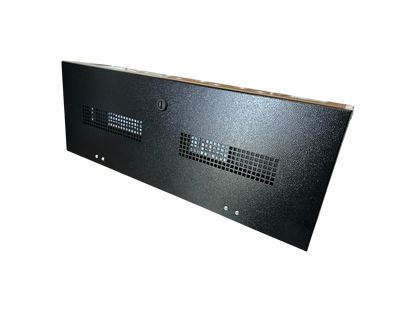

Furthermore each cueLumen core is supplied as a complete installation-ready assembly. The metal case construction, with hinged door and front panel ventilation, makes it ideal for fixed installations.

Features

• 8 physical Lines of DMX

• Supports up to 32 universes of lighting control

• Uses industry-standard Art-Net and sACN

• Secure Sig-Net communication

• Sig-Net ready

• Complete installation ready standalone application lighting controller

• Multi-zone control with extensive scene storage

• Sequenced events for automated lighting operation

• Master controls for system-wide or grouped control

• Multiple button operating modes for flexible user-interface behaviour

• Configurable startup logic defining system behaviour following startup or power restoration

• Integrated astronomical timeclock for time, sunrise and sunset based operation• Time synchronisation using NTP, with internal RTC

• Communicates with artPlay Touchscreen user interfaces with no fixed touchscreen system limit

• Supports up to 128 keypads

• Integration with external control and automation systems

• Composer offline configuration and system-management software

• Complete systems can be configured offline before deployment

• Push and pull system configuration between Composer and the installed system

• Administrator web interface for configuration, monitoring and system management

• Rugged factory assembled, installation ready enclosure.

Specification

 • Certification: CE, UKCA, WEEE, RoHS

 • IP rating: IP20 indoor use only

• Input Voltage: 100-250 VAC +/- 10%

• Internal network switch: PoE Negotiates Class 2 (3.84W - 6.49W)

• Width: 690mm

• Height: 250mm

• Depth: 141.5mm

• Net Mass: 10 kg

• Case construction: Zintec coated Steel

• Wall mount type: 80mm keyhole slots

Resources

cueLumen core Datasheet

cueLumen core User Guide

cueLumen series Product Guide

Certification

cueLumen core Declaration of Conformity
