matisse d4 dmx

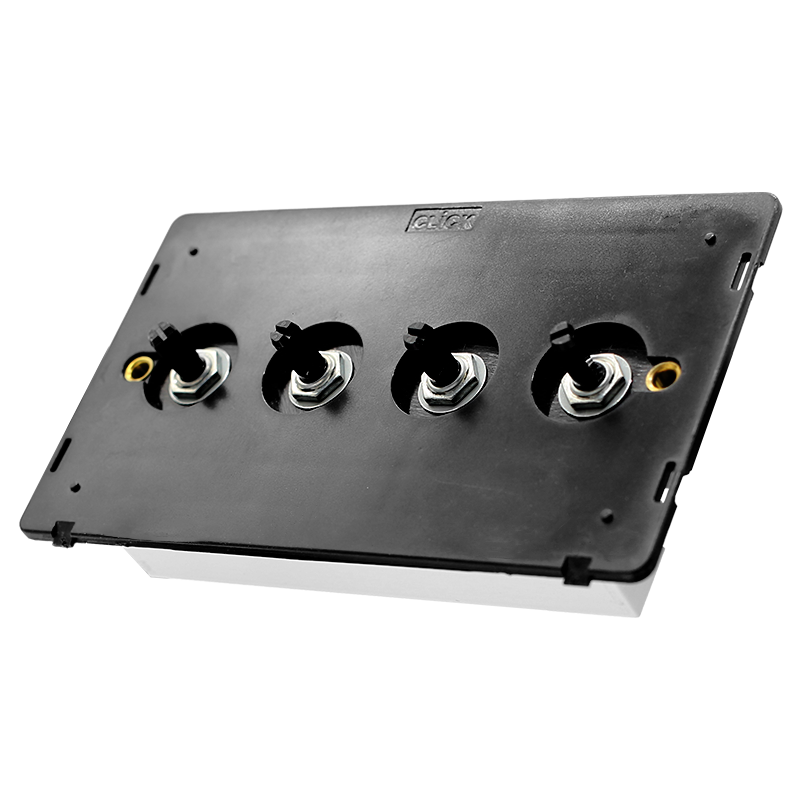

matisse d4 dmx is a multi-function DMX controller with 4 rotary dials. It is presented in a two-gang UK style panel.

matisse d4 dmx requires a cosmetic cover plate, this can be purchased as an option with the product.

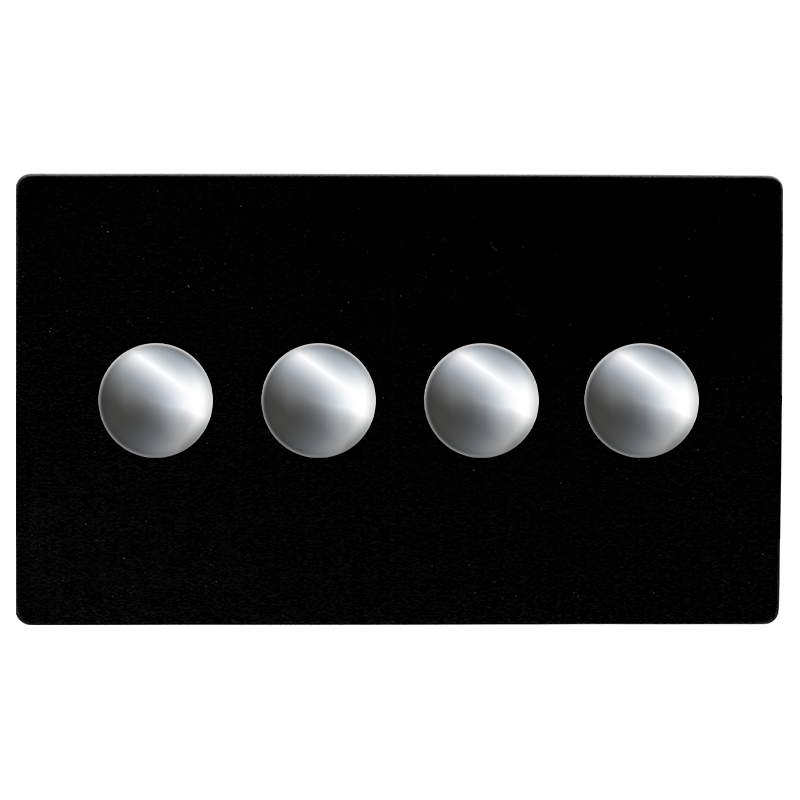

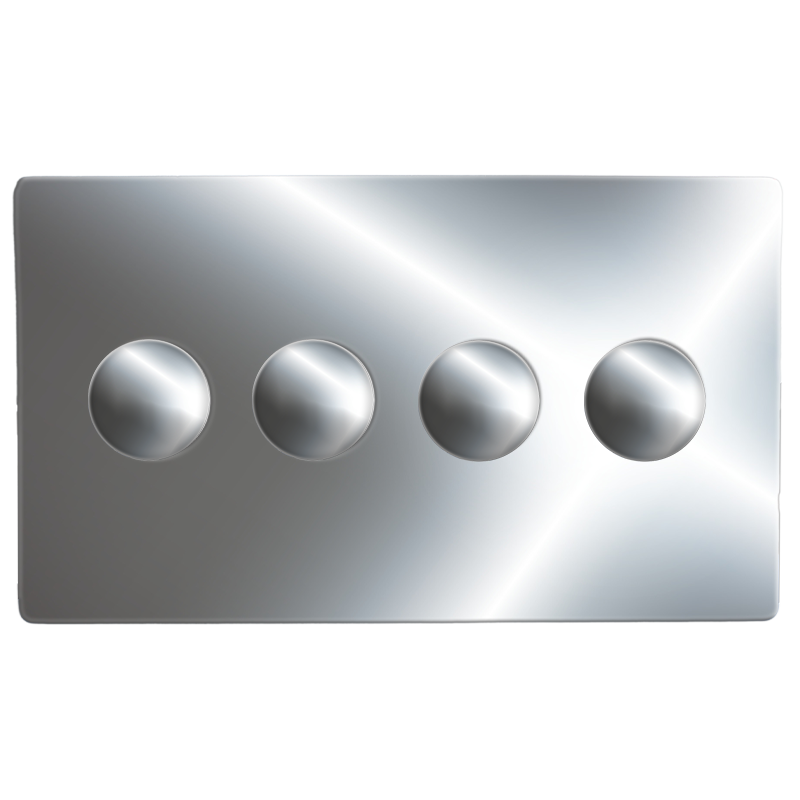

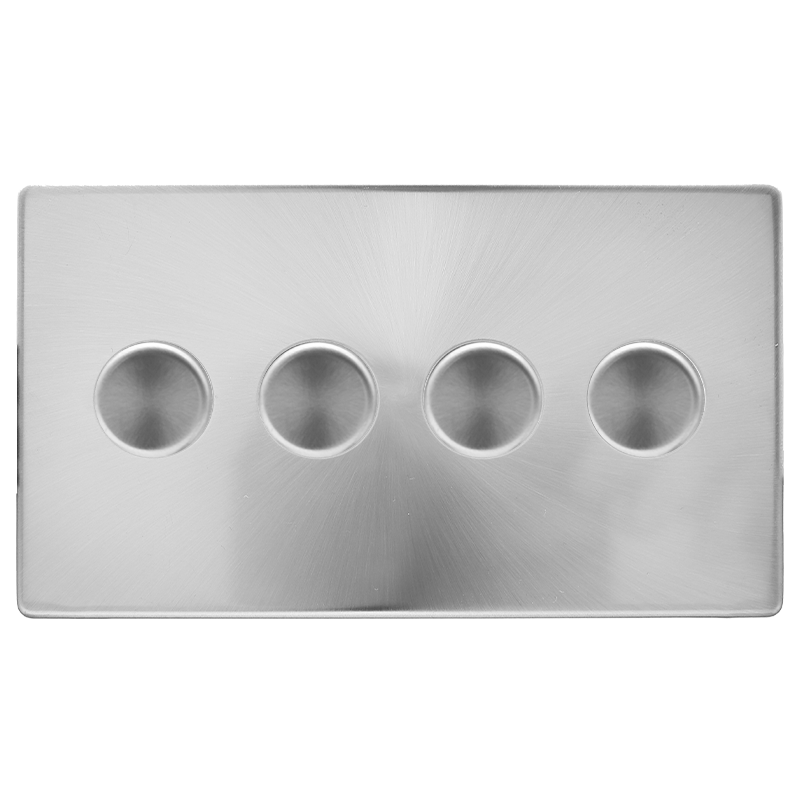

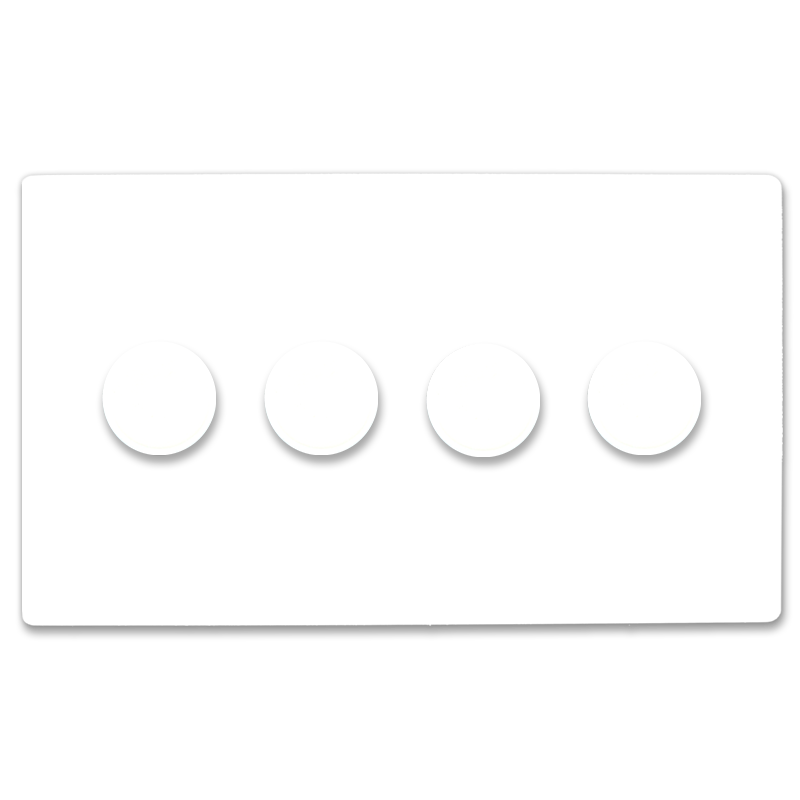

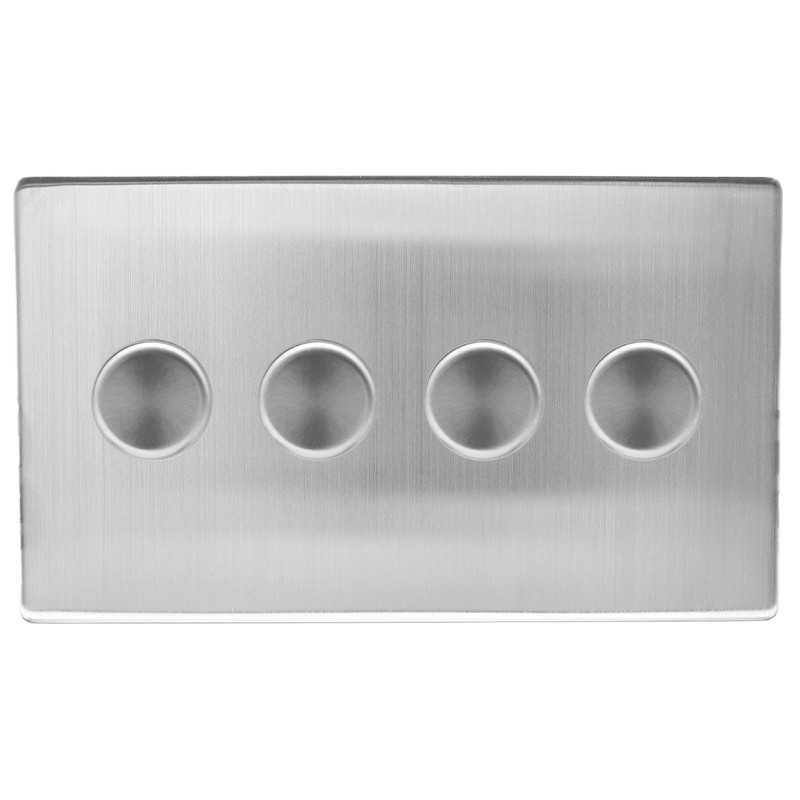

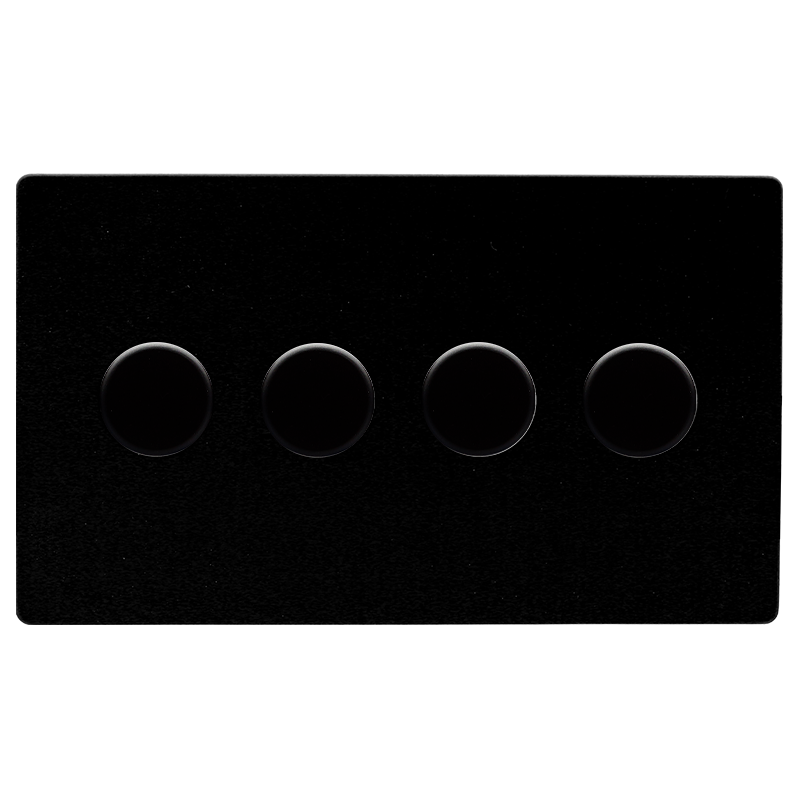

The cover plate material finish variants are: matt black, matt black with chrome dial, brushed steel, stainless steel, chrome and polished white.

Please add the cover plate to your cart as a separate item.

Learn more

In scene mixer mode, each dial can playback a 512 channel scene. The scenes can be mixed together with the dials operating as masters. LTP/HTP can be programmed on a per channel basis using our snapshot technique: simply set the incoming channel to zero for HTP or full for LTP and press record.

In preset mode, each dial can control a single output channel, while hue fader mode enables control over RGB/I colour.

Other features include the ability to merge the output of the product onto received DMX512, and to use the far right-hand dial as a grand master.

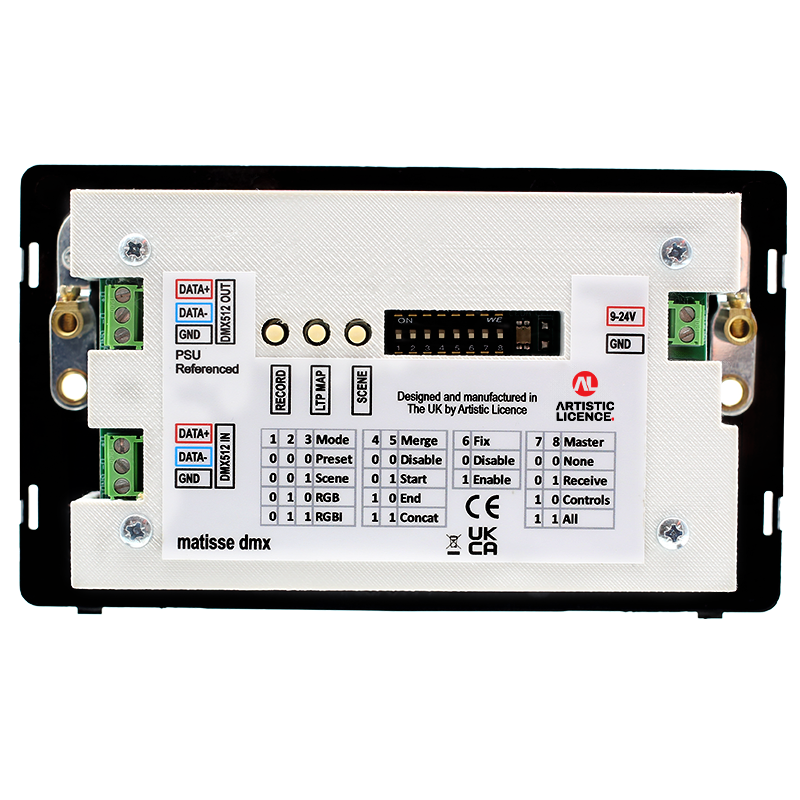

All configuration or programming is achieved with a simple set of configuration switches on the rear panel, so there is no need for external control boxes.

The product mounts in a landscape orientation 2-gang UK back-box (not included).

matisse d4 dmx requires a 9-24 VDC power supply (not included). We recommend PSU-24-0.75-FER.

Features

• Wall mount DMX controller

• DMX512 output

• 4 rotary dials

• 512 channel output

• Grand master control

• Multiple functions including preset, scene mixer, hue fader and merge mode

• Supports data merging (LTP/HTP per channel) and data fixing

• Simple DIP switch configuration

• Easy push-button programming – no external software required

• Link multiple panels to one DMX cable using concatenate merge

• Choice of cover plates in contemporary material finishes

• External 9-24 VDC PSU required

Specification

• Listing: CE

• IP Rating: Indoor use

• Power: 1W

• Input Voltage: 9-24 VDC

• Height: 86 mm

• Width: 146mm

• Depth: 24 mm

• Net Mass: 0.2 kg

• DMX512: Screw Terminal

• Power Connection: Screw Terminal

• Manufacturer: Artistic Licence

• Country of Manufacture: UK

Resources

matisse d4 dmx user guide

matisse d4 dmx datasheet

Certification

matisse d4 dmx Declaration of Conformity

matisse d4 dmx Certificate of Origin
