matisse f6 dmx

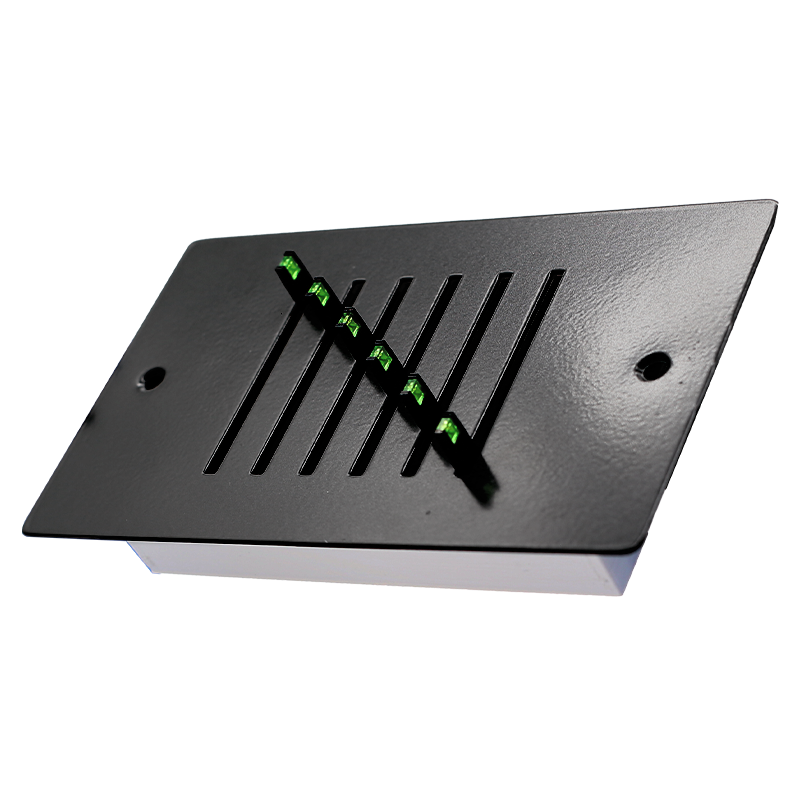

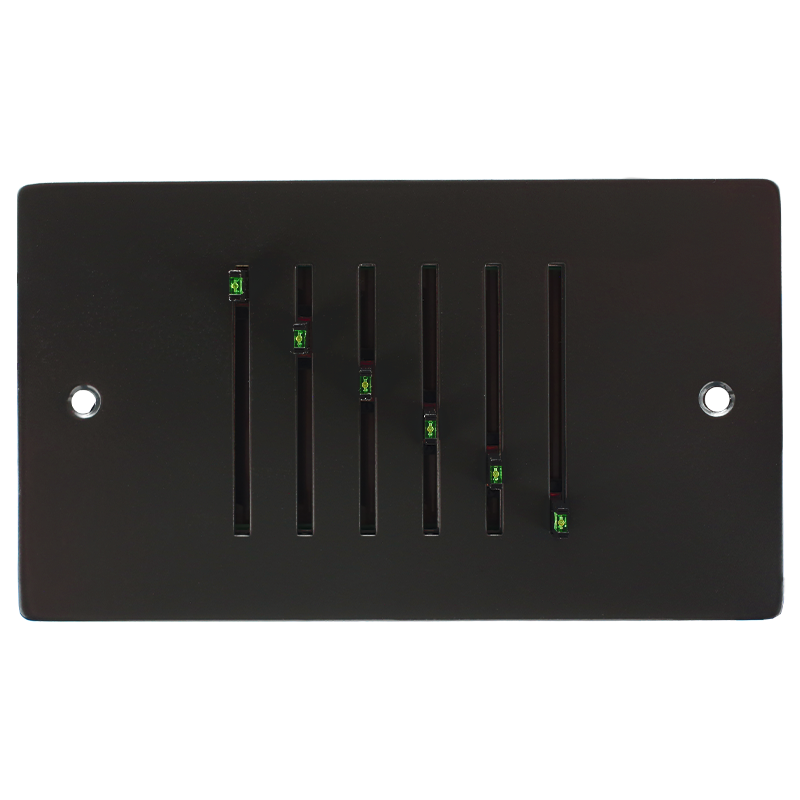

matisse f6 dmx is a multi-function DMX controller with 6 faders. It is presented in a two-gang UK style panel.  All the electronics are mounted on the rear of the panel.

In scene mixer mode, each fader can playback a 512 channel scene. The scenes can be mixed together with the faders operating as masters. LTP/HTP can be programmed on a per channel basis using our snapshot technique: simply set the incoming channel to zero for HTP or full for LTP and press record.

In preset mode, each fader can control a single output channel, while hue fader mode enables control over RGB/I colour.

Learn more

Other features include the ability to merge the output of the product onto received DMX512, and to use the far right-hand fader as a grand master.

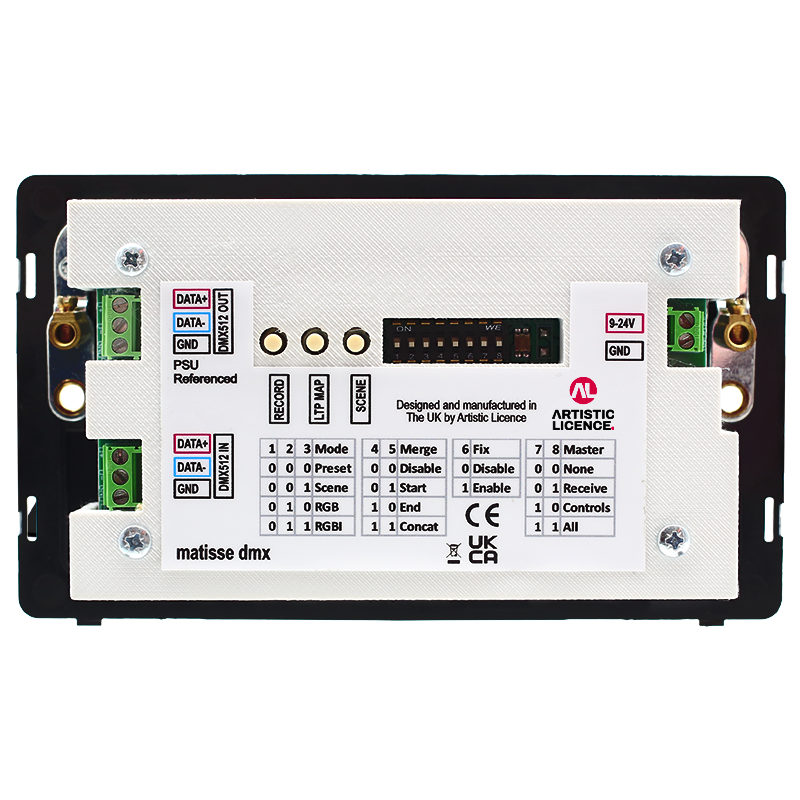

All configuration and programming is achieved with a simple set of configuration switches on the rear panel, so there is no need for external control boxes.

The product mounts in a landscape orientation 2-gang UK back-box (not included).

matisse f6 dmx requires a 9-24 VDC power supply (not included). We recommend PSU-24-0.75-FER.

Features

• Wall mount DMX controller

• DMX512 output

• 6 illuminated faders

• 512 channel output

• Grand master control

• Multiple functions including preset, scene mixer, hue fader and merge mode

• Supports data merging (LTP/HTP per channel) and data fixing

• Simple DIP switch configuration

• Easy push-button programming – no external software required

• Link multiple panels to one DMX cable using concatenate merge

• Standard panel in RAL7043 colour

• Custom panel finish and silk screen available on special order

• External 9-24 VDC PSU required

Specification

• Listing: CE

• IP Rating: Indoor use

• Power: 1W

• Input Voltage: 9-24 VDC

• Height: 86 mm

• Width: 146mm

• Depth: 24 mm

• Net Mass: 0.2 kg

• DMX512: Screw Terminal

• Power Connection: Screw Terminal

• Manufacturer: Artistic Licence

• Country of Manufacture: UK

Resources

matisse f6 dmx user guide

matisse f6 dmx datasheet
