matisse Light-Switch II

matisse Light-Switch II is the next evolution of our popular Light-Switch controller, designed for sophisticated room control applications. matisse Light-Switch II retains all the functionality of its predecessor, but features a built-in USB programming port for easier editing.

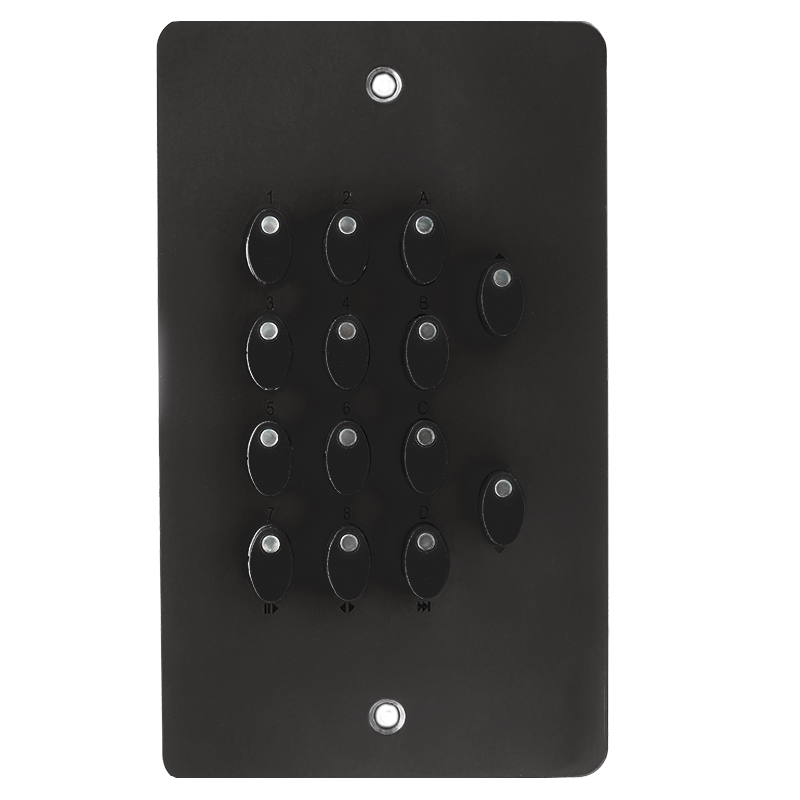

matisse Light-Switch II is a DMX512 playback system, controlled by 14 buttons. Features include 3 pages of 8 memories. Each memory contains all 512 channels and an independent fade time. A fourth page provides 6 sequences with variable step times and direction control.

Up to 15 panels can be connected to a single DMX512 cable. Each panel can be programmed to control a specific zone or group of DMX channels. This allows matisse Light-Switch II to be used in multi-room or multi-zone applications.

Learn more

The entire system is programmed using the free Switch-Edit software. Once programmed, the show is downloaded and programmed to flash memory. Switch-Edit contains a moving lamp library and fully implements both post and pre-master channels. This feature allows all types of DMX devices to be freely mixed.

matisse Light-Switch II can also be programmed by recording DMX512 from a lighting console.

The product can be mounted in a portrait orientation 2-gang UK back-box.

matisse Light-Switch II requires a 9-24 VDC power supply (not included). We recommend PSU-24-0.75-FER.

matisse Light-Switch II will find applications in conference room, retail, domestic, trade show and museum exhibit applications.

Features

• Wall mount DMX512 controller (RAL7043)

• USB programming interface

• 512 channel output

• 3 pages of 8 memories

• Individual fade time per memory

• 1 page of 6 sequences

• Sequences built from 100 memories

• Individual sequence step times

• Grand master control

• Define any channel as G-M controlled

• Multiple zone control

• Illuminated switches

Specification

• Listing: CE

• IP Rating: Indoor use

• Power: 2W

• Input Voltage: 9-24 VDC

• Height: 85mm

• Width: 146mm

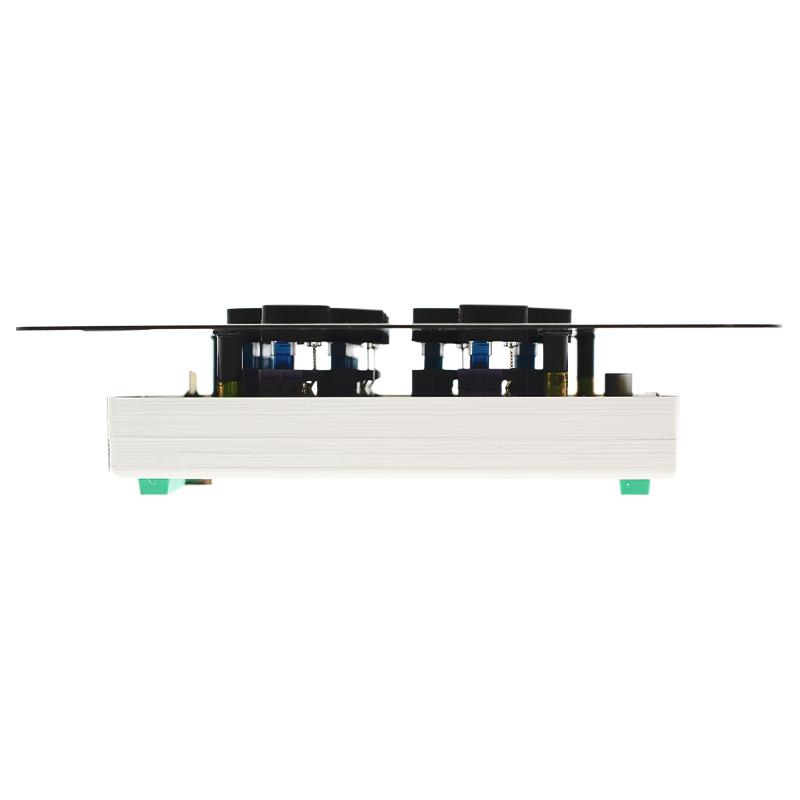

• Depth: 39mm inc mated connectors

• Net Mass: 0.25 kg

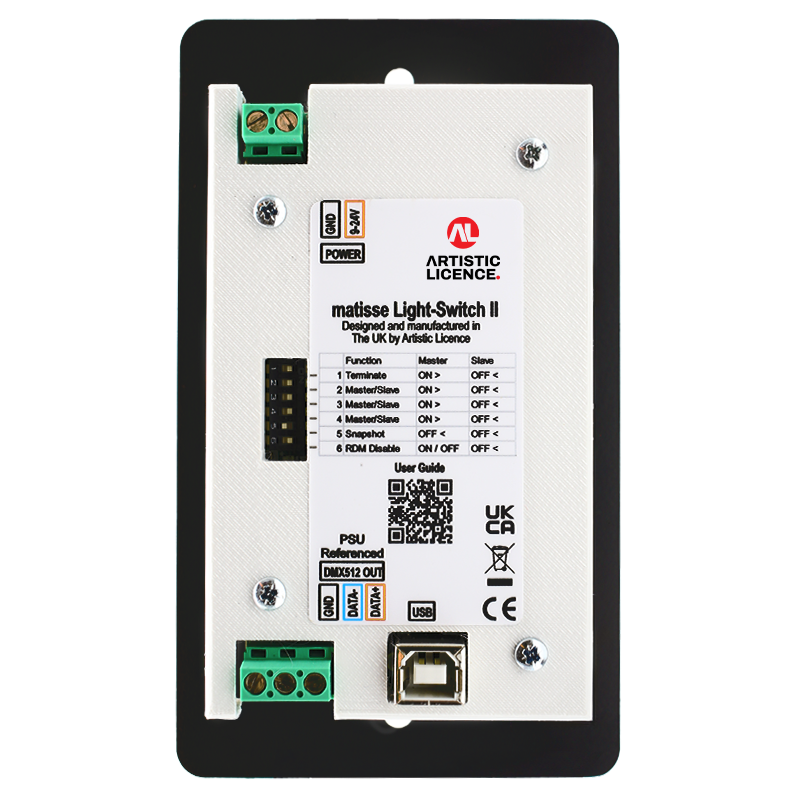

• DMX512: Screw Terminal

• Power Connection: Screw Terminal

• Power & DMX not connected to chassis

• Manufacturer: Artistic Licence

• Country of Manufacture: UK
