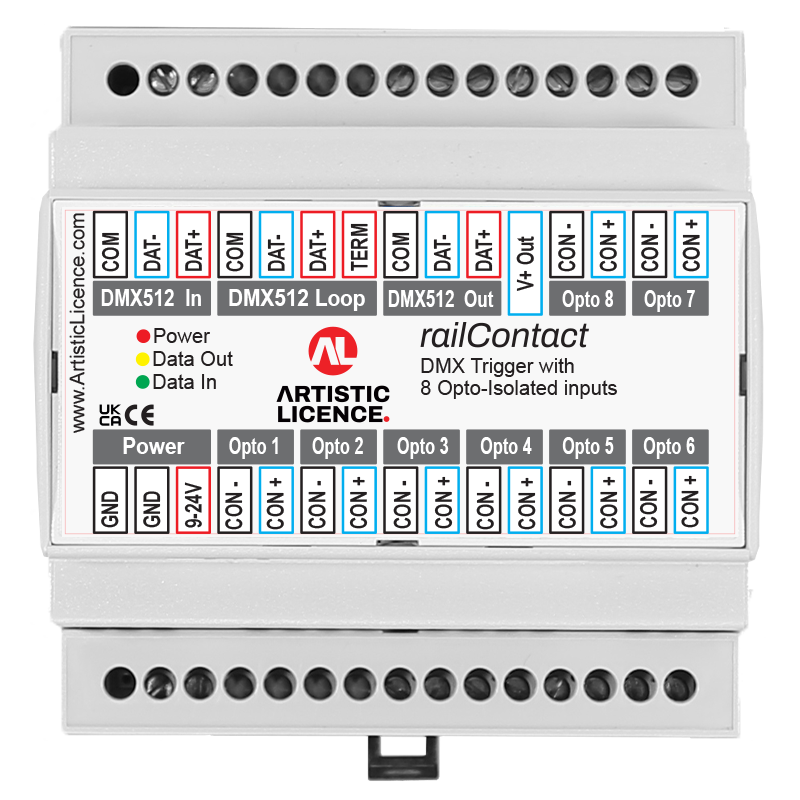

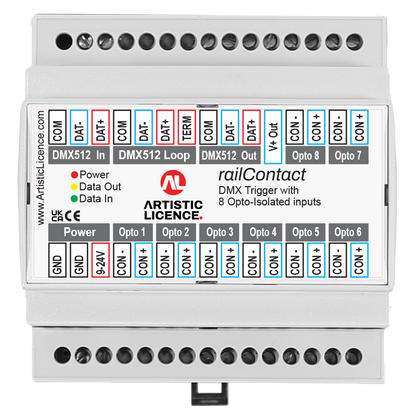

Rail-Contact

Rail-Contact monitors the state of 8 contact closures and translates this into a value on DMX channels 1 to 8. When a contact closure is active the corresponding value of DMX is 255.

If more than 8 channels are required then two Rail-Contacts can be linked together to form a 16 channel device. The DMX output from the first unit is connected to the input to the second unit. The first 8 channels are then re-patched to channels 9 to 16.

Using Rail-Contact will allow a DMX controller to be triggered, via DMX, by various switches, e.g.pressure mats. This is a perfect solution for systems that are required to be interactive with their surroundings.

Rail-Contact requires a 9-24 VDC power supply. We recommend PSU-24-0.75-FER.

Features

• DIN rail case

• 8 channel DMX trigger (0 or 255 value)

• Inputs are fully opto-isolated

• Voltage output for easy connection

Specification

• Input Voltage: 9 to 24 VDC

• Power: 10W

• Protection: internal resettable fuse

• DMX lnput & DMX loop

• Product cascade option

• Protocol: DMX512-A

• Duty Cycle: 100%

• Listing: CE

• Height: 90mm

• Width: 88mm (5M)

• Depth: 58mm

• Net Mass: 0.20 kg

• Manufacturer: Artistic Licence

• Country of Manufacture: UK
