railSplit quad - 2 variants

railSplit quad provides convenient RJ45 DMX input and output connections and  is available in two variants:

• railSplit quad - RDM enabled splitter

• railSplit quad Extreme - RDM enabled spltite with Extreme DMX protection

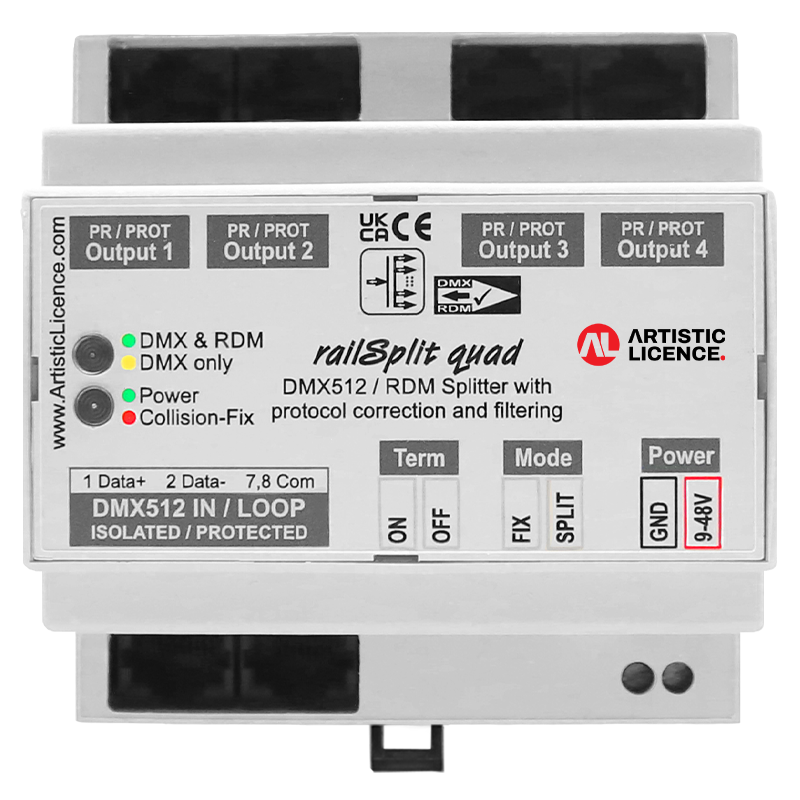

Quad

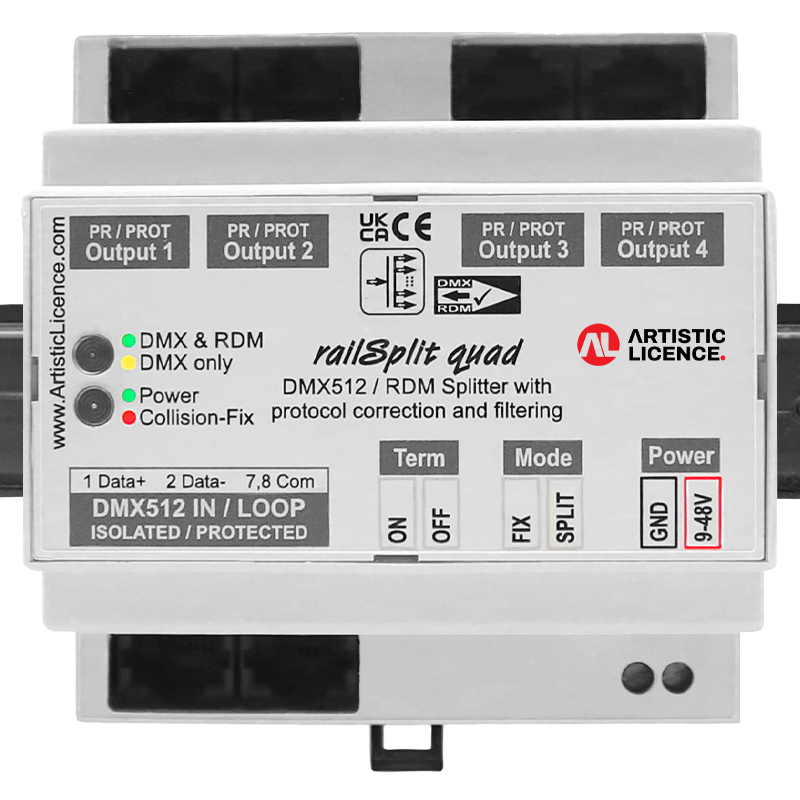

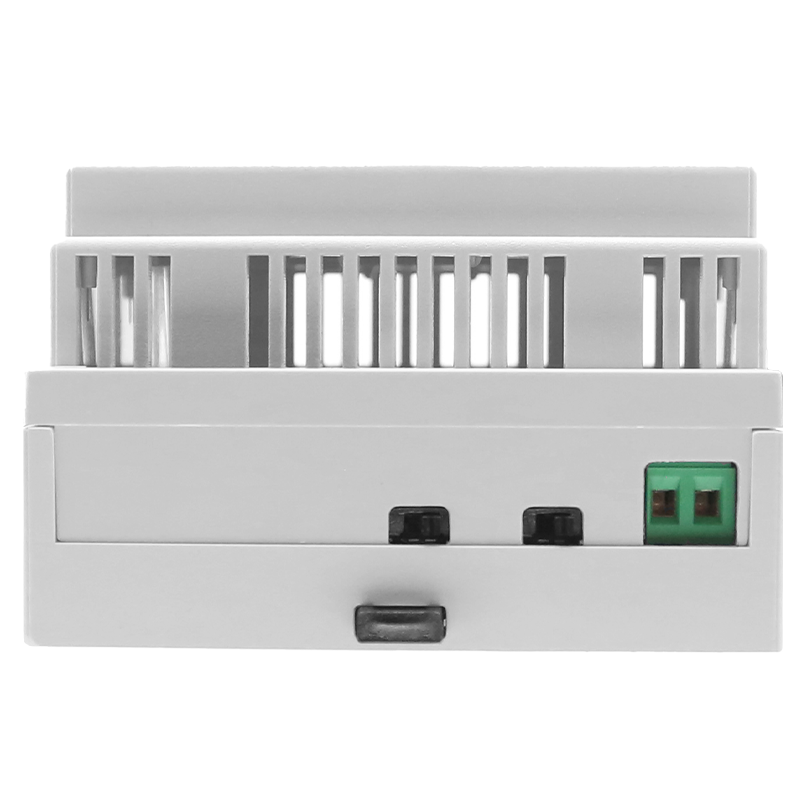

railSplit quad is DIN Rail mounted for ease of installation. All DMX connections are via convenient RJ45 connections. DMX loop through is provided for simple onward connection of the DMX line.

The product offers high levels of electrical protection. It can survive mains electrocution of up to 425 VAC continuous connection on the input, loop and outputs. If you additionally require sacrificial surge protection, please see the sister product, railSplit Extreme.

railSplit quad supports the RDM (Remote Device Management) Standard. RDM allows bidirectional communication over the DMX cable.

railSplit quad is powered from a 9 to 48 VDC power source. We recommend the PSU-24-0.75-FER.

Features

• RJ45 connections for DMX input, loop and outputs

• Mains electrocution protection

• Optically isolated DMX512 input

• Front panel power and data indication

• Four buffered outputs

• Bidirectional data ports

• Jabber Detection

• Fix Mode

• DIN Rail mounting

• Compatible with DMX512, DMX512 (1990), DMX512-A

• Protocols: RDM Standard V1.0 (E1.20 – 2010 ESTA Standard)

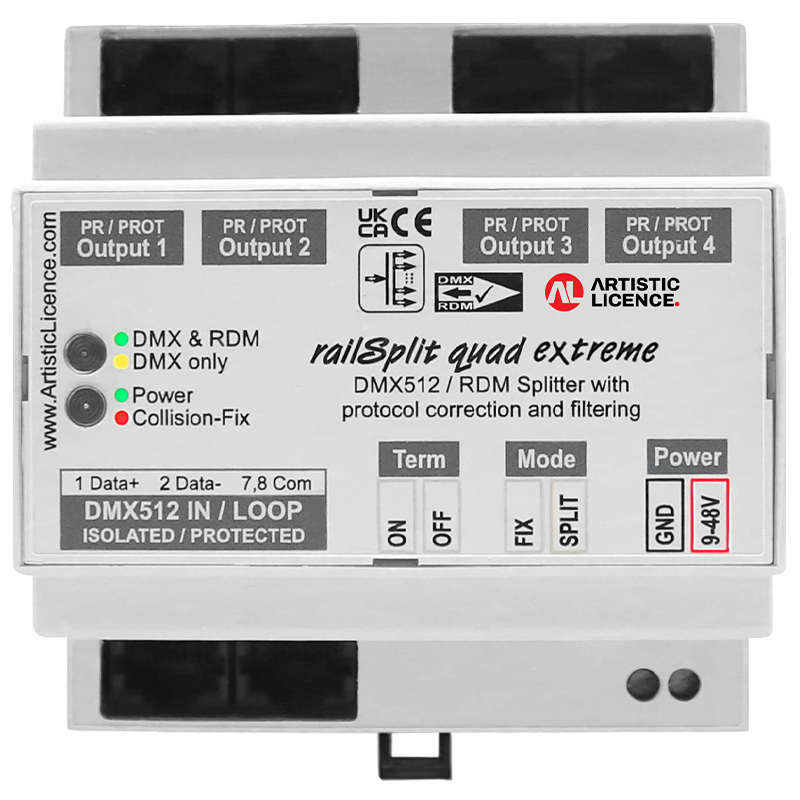

Qaud Extreme

railSplit quad extreme is a variant of  railSplit quad, optimised for harsh conditions and for use in electrically noisy environments.

It is a 1-in-to-4-out DMX512 splitter with support for RDM and a fix mode which filters non-standard data and fixes timing errors. Isolated input. DIN rail enclosure with screw terminal connectors.

railSplit quad Extreme additionally provides surge protection on the input, loop and outputs, which is aimed at protecting the product and connected equipment against voltage surges of the type generated by lightning.

Features

• Mains electrocution protection (self-healing)

• Surge protection (sacrificial)

• Optically isolated DMX512 input

• RJ45 connections for DMX input, loop and outputs

• Front panel power and data indication

• Four buffered outputs

• Bidirectional data ports

• Jabber Detection

• Fix Mode

• DIN Rail mounting

• Compatible with DMX512, DMX512 (1990), DMX512-A

• Protocols: RDM Standard V1.0 (E1.20 – 2010 ESTA Standard)

Specification

railSplit quad

• Listing: CE FCC

• IP Rating: Indoor use

• Power: 8 W

• Input Voltage: 9 to 48 VDC

• Width: 88 mm (5M)

• Height: 90 mm

• Depth: 62 mm

• Net Mass: 0.20 kg

• Connection DMX: RJ45

• Connection Power: Screw Terminal

• 15kV+ ESD DMX Input & Output Protection

• Electrocution protection: Input, Loop and all outputs protected against continuous connection to 425 VAC (self-healing)

• Manufacturer: Artistic Licence

• Country of Manufacture: UK



railSplit quad Extreme

• Listing: CE FCC

• IP Rating: Indoor use

• Power: 8 W

• Input Voltage: 9 to 48 VDC

• Width: 88 mm (5M)

• Height: 90 mm

• Depth: 62 mm

• Net Mass: 0.20 kg

• Connection DMX: RJ45

• Connection Power: Screw Terminal

• Electrocution protection: Input, Loop and all outputs + protected against continuous connection to 425 VAC (self-healing)

• Surge protection (Input, Loop and all outputs): Max IDC 30,000A (8/20µS) sacrificial (1 operation)

• Manufacturer: Artistic Licence

• Country of Manufacture: UK
