versaSplit ISO Extreme
versaSplit ISO Extreme
Log In to your trade account.
Couldn't load pickup availability

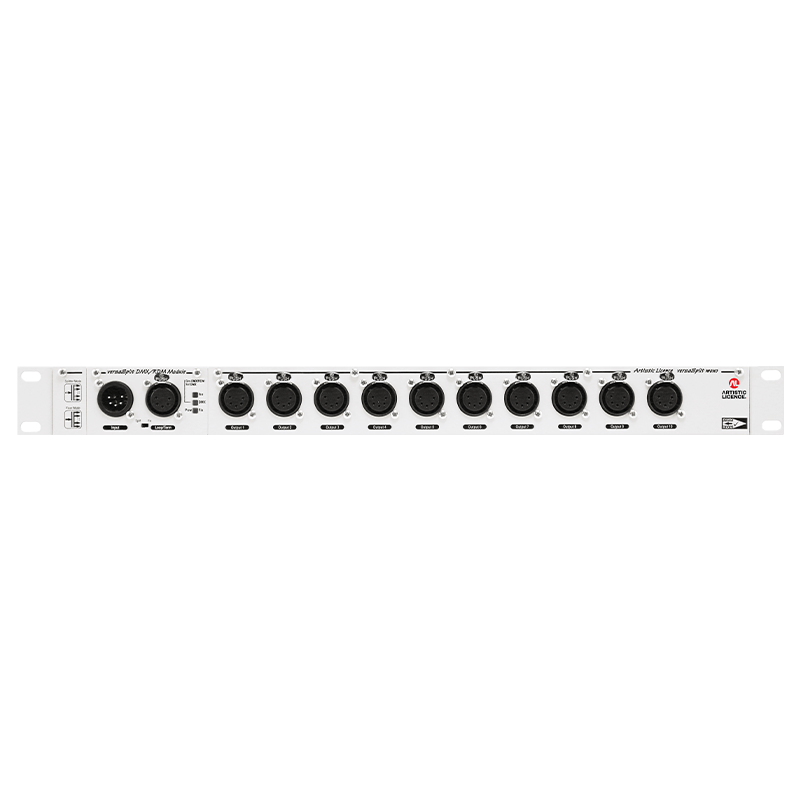

versaSplit mono is a 1-input, 10-output DMX512/RDM optosplitter/fixer in 1RU 19″ rack mount format.
The input is modular and available in 5 variations that determine the product function:
1. Choosing the XLR5 or XLR8 (Ethercon) input module gives a DMX512 splitter / fixer with RDM support.
2. Choosing the ETHB input turns the product into a 1-universe gateway, capable of handling Art-Net (all versions up to Art-Net 4) and sACN.
3. Choosing the CRMX input turns the product into a wireless DMX splitter.
4. Choose the blank panel that can be used to blank off one of the inputs.
Please note, modules need to be purchased separately.
Output connectors are XLR5 or XLR8 (Ethercon). All outputs are ground referenced using robust drivers with advanced protection.
Iso extreme
versaSplit iso extreme is an ideal solution for the sort of harsh environments that may be encountered in live touring, or permanent installations such as bridges or towers.
All outputs are individually isolated using robust drivers with advanced protection. Outputs are also protected against continuous connection to fault voltages up to 425VAC and additionally provide surge protection. This feature is aimed at protecting the product and connected equipment against voltage surges of the type generated by lightning. The protection is sacrificial which means that after a certain number of protection events, the protection circuitry will be destroyed.
Modules

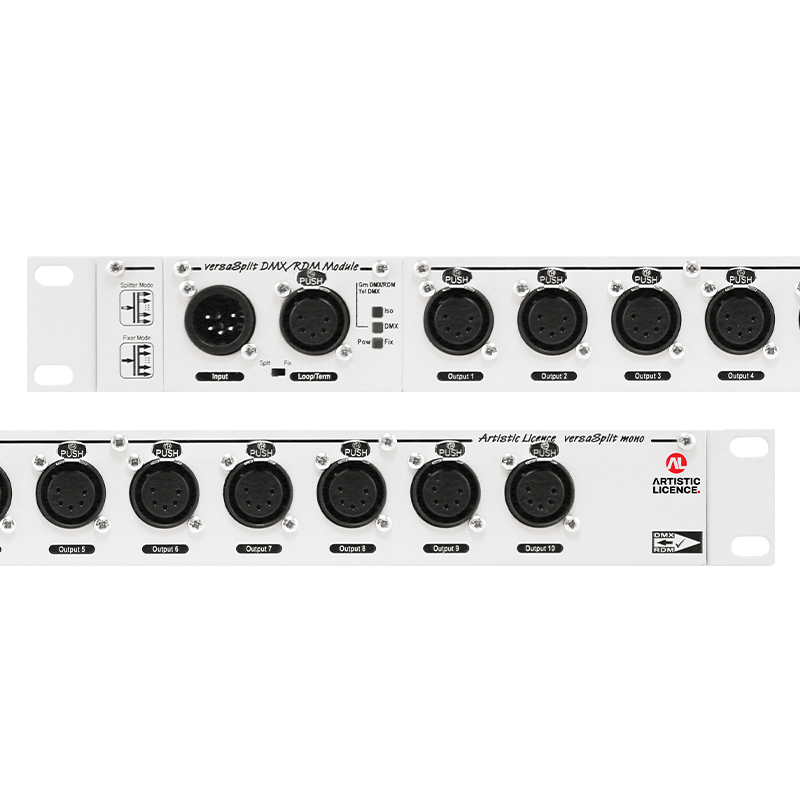

The versaSplit DMX/RDM input module adds DMX input capability to the entire versaSplit range. It provides an isolated input and loop-through using 5-pin XLR connectors, or via an RJ45 Ethercon connector, depending on the chosen variant. The module also provides a split – fix switch which allows out-of-spec timing to be corrected and unusual DMX packets or RDM to be removed.
The versaSplit CRMX input module adds wireless DMX input capability to the entire versaSplit range. RDM is not currently supported. It is supplied complete with an antenna and fully supports the Lumen Radio CRMX wireless DMX protocol.
The versaSplit Ethernet B input module adds Art-Net 4 and sACN input capability to the entire versaSplit range.
Data input is via a Neutrik Ethercon. All network configuration can be done via a browser or using DMX-Workshop.
The blank panel can be used to blank off one of the inputs.
Operation
versaSplit DMX/RDM input module
The module also provides a split – fix switch which allows out-of-spec timing to be corrected and unusual DMX packets or RDM to be removed. In Fix Mode, the product discards all RDM and other specialist data packets. It also adjusts the DMX timing to values that are likely to be acceptable to fixtures that do not fully comply with the DMX standard. The list below shows the fix mode features.
• Accepts and corrects break in range 56 µs – 1000 µs and outputs 250 µs
• Accepts and corrects MaB in range 5 µs – 1000 µs and outputs 30 µs
• Accepts and corrects MbB in range 0 µs – 1000 µs and outputs 30 µs
• Accepts channel count 1 – 512 and outputs 512
• Accepts refresh period from 23 ms – 1000 ms and outputs 30ms
• Filters out multiple consecutive breaks
• Re-times bytes of 1 stop bit to 2 stop bits
• Filters out all non-zero start code packets
• Re-times digital signal
versaSplit CRMX input module
The module also provides a split – fix switch which allows out-of-spec timing to be corrected and unusual DMX packets or RDM to be removed. In Fix Mode, the product discards all RDM and other specialist data packets. It also adjusts the DMX timing to values that are likely to be acceptable to fixtures that do not fully comply with the DMX standard. The list below shows the fix mode features.
• Accepts and corrects break in range 56 µs – 1000 µs and outputs 250 µs
• Accepts and corrects MaB in range 5 µs – 1000 µs and outputs 30 µs
• Accepts and corrects MbB in range 0 µs – 1000 µs and outputs 30 µs
• Accepts channel count 1 – 512 and outputs 512
• Accepts refresh period from 23 ms – 1000 ms and outputs 30ms
• Filters out multiple consecutive breaks
• Re-times bytes of 1 stop bit to 2 stop bits
• Filters out all non-zero start code packets
• Re-times digital signal
Features
• 10 output DMX512/RDM splitter/fixer
• Choice of input modules
• XLR5 or XLR8 (Ethercon) output connectors
• Rack mount
• DMX512 output protection
• 80V +/- electrocution protection
• 12KV ESD
• Slew rate limited drivers for improved signal quality
• Front panel power and data indication
• Bidirectional data ports
• Jabber Detection
• Fix Mode
• Compatible with DMX512, DMX512 (1990), DMX512-A, RDM
• UL approved PSU
Specification
• Listing: CE
• IP Rating: Indoor use
• Power: 250 W
• Input Voltage: 90-250 VAC
• Height: 1RU
• Width: 19″ Rack
• Depth: 227 mm

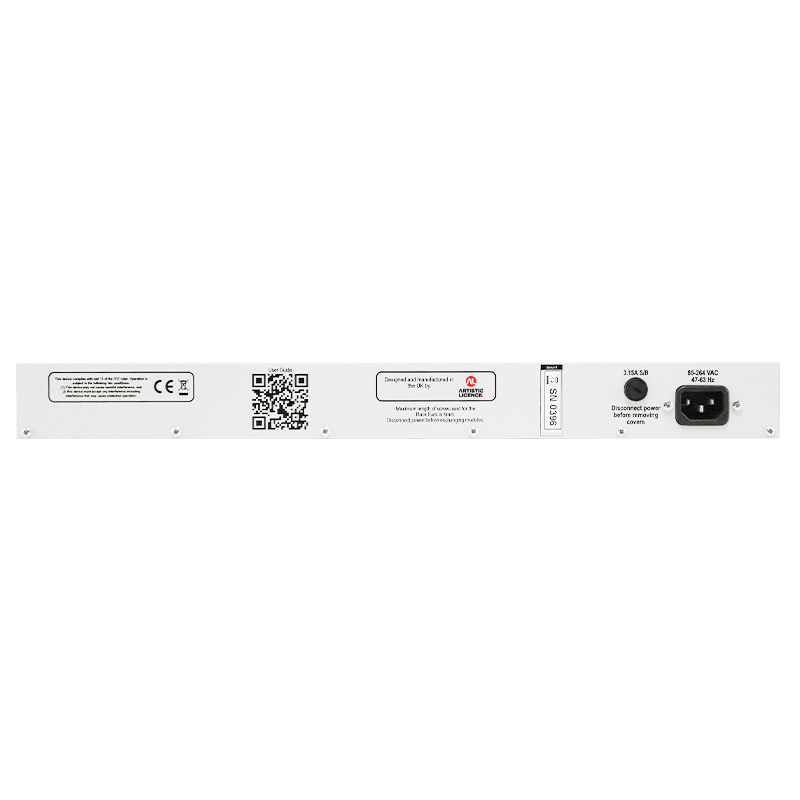

• Mains Connection: IEC
• Net Mass: 2.28 kg
• Manufacturer: Artistic Licence
• Country of Manufacture: UK
Resources
versaSplit mono XLR5 datasheet
versaSplit mono XLR8 datasheet
Ethernet input module datasheet
Certification
