versaSplit modules

The input modules are available in 5 variations that determine the product function(s):

1. Choose the XLR5 or XLR8 (Ethercon) input module(s) for a DMX512 splitter / fixer with RDM support.

2. Choose the ETHB input module for a gateway capable of handling Art-Net (all versions up to Art-Net 4) and sACN.

3. Choose the CRMX input module for a wireless DMX splitter.

4. Choose the blank panel that can be used to blank off one of the inputs.

Modules

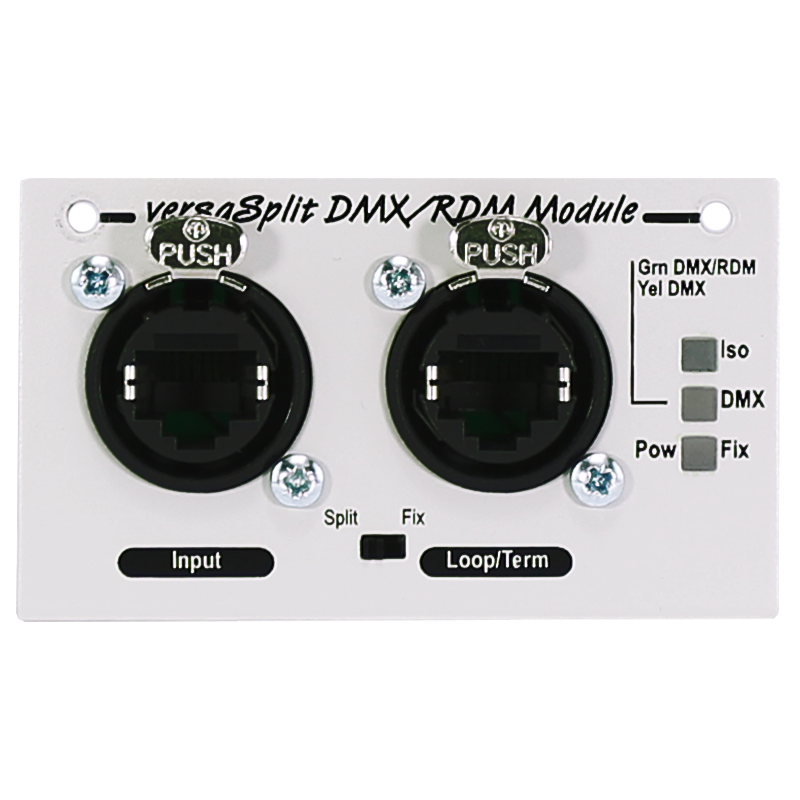

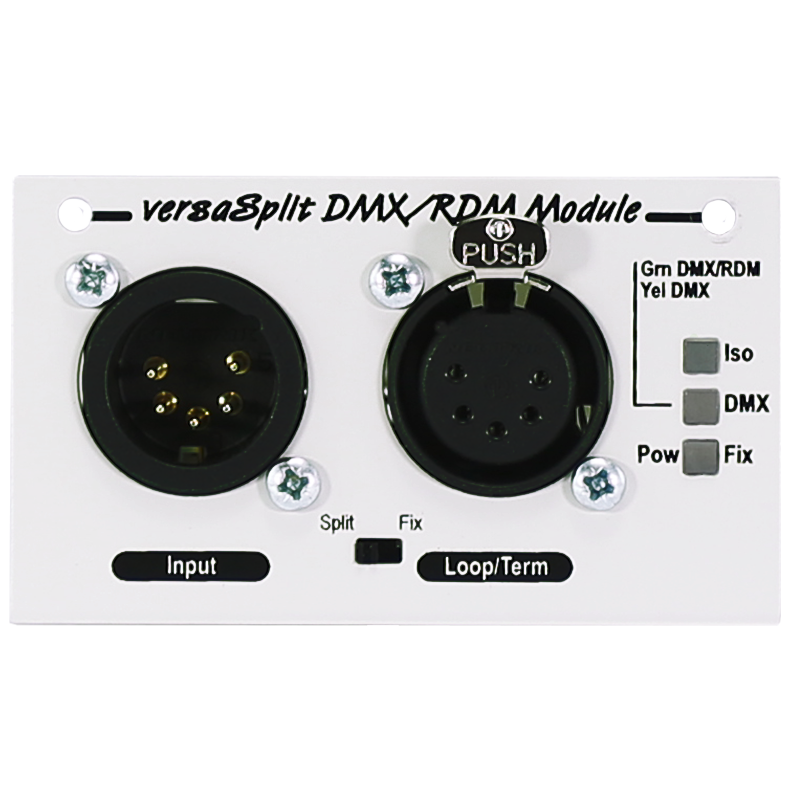

The versaSplit DMX/RDM input module adds DMX input capability to the entire versaSplit range. It provides an isolated input and loop-through using 5-pin XLR connectors, or via an RJ45 Ethercon connector, depending on the chosen variant. The module also provides a split – fix switch which allows out-of-spec timing to be corrected and unusual DMX packets or RDM to be removed.

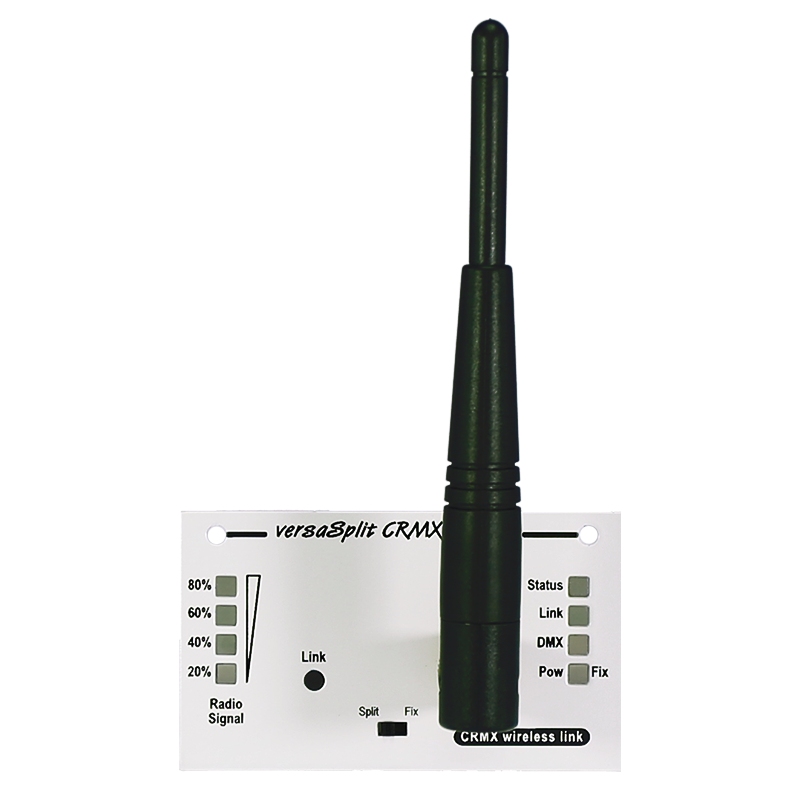

The versaSplit CRMX input module adds wireless DMX input capability to the entire versaSplit range. RDM is not currently supported. It is supplied complete with an antenna and fully supports the Lumen Radio CRMX wireless DMX protocol.

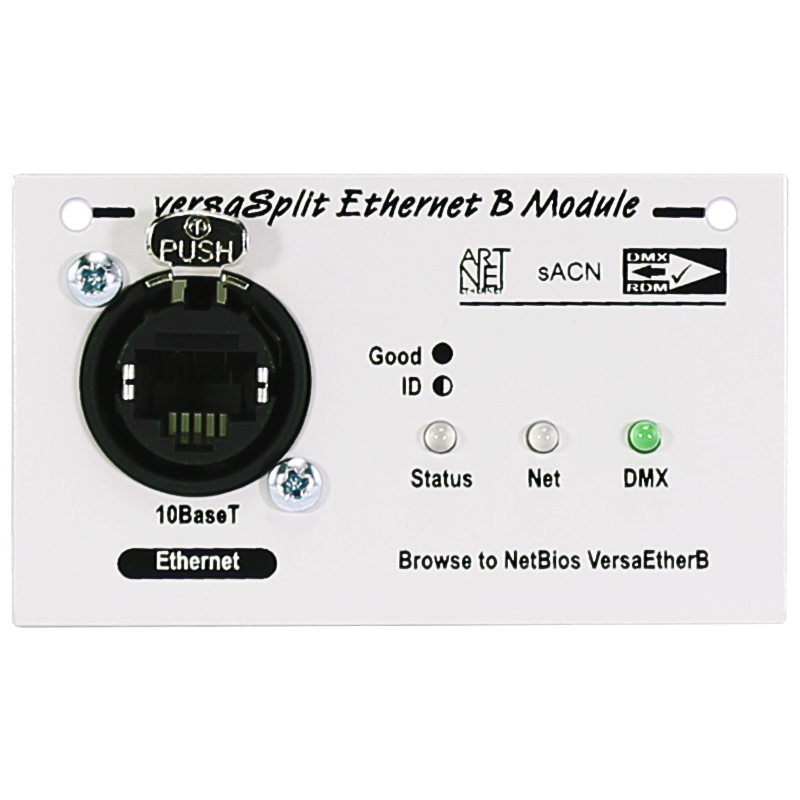

The versaSplit Ethernet B input module adds Art-Net 4 and sACN input capability to the entire versaSplit range.

Data input is via a Neutrik Ethercon. All network configuration can be done via a browser or using DMX-Workshop.

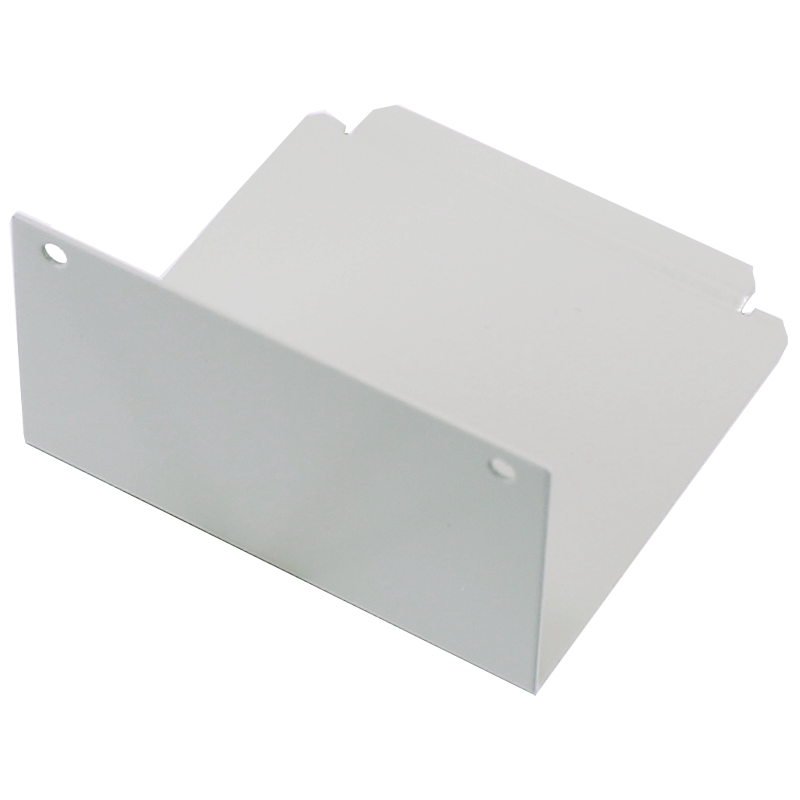

The blank panel can be used to blank off one of the inputs to versaSplit duo.

Features

• 8-output DMX512/RDM splitter/fixer

• Expandable input

• Rack mount

• Mains electrocution protection on outputs

• Slew rate limited drivers for improved signal quality

• Front panel power and data indication

• Bidirectional data ports

• Jabber Detection

• Fix Mode

• Compatible with DMX512, DMX512 (1990), DMX512-A, RDM

• UL approved PSU

Specification

• Listing: CE

• IP Rating: Indoor use

• Power: 250 W

• Input Voltage: 90-250 VAC

• Height: 1RU

• Width: 19″ Rack

• Depth: 227 mm

• Mains Connection: IEC

• Net Mass: 2.28 kg

• 15kV+ ESD DMX Output Protection

• Electrocution protection: All outputs protected against continuous connection to 425 VAC (self-healing)

• Manufacturer: Artistic Licence

• Country of Manufacture: UK

Resources

Splitter comparison table

XLR5 input module datasheet

XLR8 input module datasheet

CRMX input module datasheet

Ethernet input module datasheet
